Text from PDF Page: 013

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter 4. Open a HyperTerminal window on the Console PC and set its communication settings as follows (ensure the correct COM port is configured): Baud: 19200 Data Bits: 8 Parity: None Stop Bits: 1 Flow Control: None Connect with the CPC-100 5. Turn ON the CPC-100. The red LEDís will light up and then turn OFF in a certain sequence, which determines if the hardware is OK. The sequence should be 1, 2, 3, 4, followed by the two green ETHERNET LEDís and then the two green PHONE LEDís. Almost immediately after the sequence is completed, the LEDís should turn OFF in the same exact order. 6. In the following steps, you need to enter the bootloader and modify some parameters. Cycle power to the CPC-100. Almost immediately after it is powered, you will be prompted to enter the bootloader. Hit at the Console PC when you see the following prompt: uCbootstrap v1.5.9 (c) Copyright 1999-2000 Rt-Control Inc. (c) Copyright 2000-2001 Lineo, Inc. All Rights Reserved. Autoboot in 2 seconds. to abort... If you do not press when prompted, the CPC-100 will boot completely and load the Linux operating system. If this happens you will be at the login screen, which looks as follows: Welcome to uClinux! uClinux /ju:si:`linuks/ 1.n. Microcontroller Linux; Embedded microcontroller operating system. 2.n. An embedded soft real time kernel (see also POSIX.4) 3.n. Embedded Linux internet/intranet development platform. 4. synonym for the successful rapid development of embedded system applications. For more information on the uClinux operating system please visit the http://www.uclinux.com and http://www.uclinux.org web sites. uCdimm login: In this case, you will have to reboot the CPC-100 by recycling power. 410003-001 Rev A (Apr 2002) Page 13 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

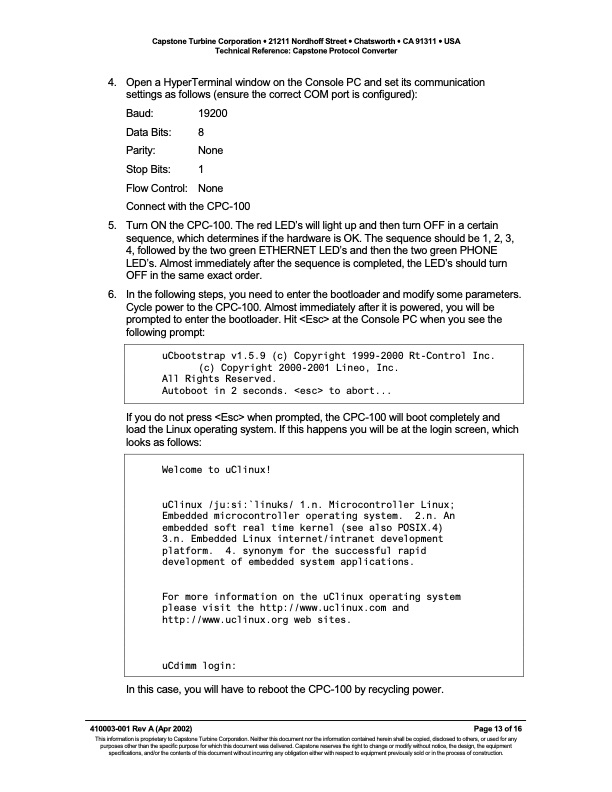

PDF Image | Technical Reference Capstone Protocol Converter
