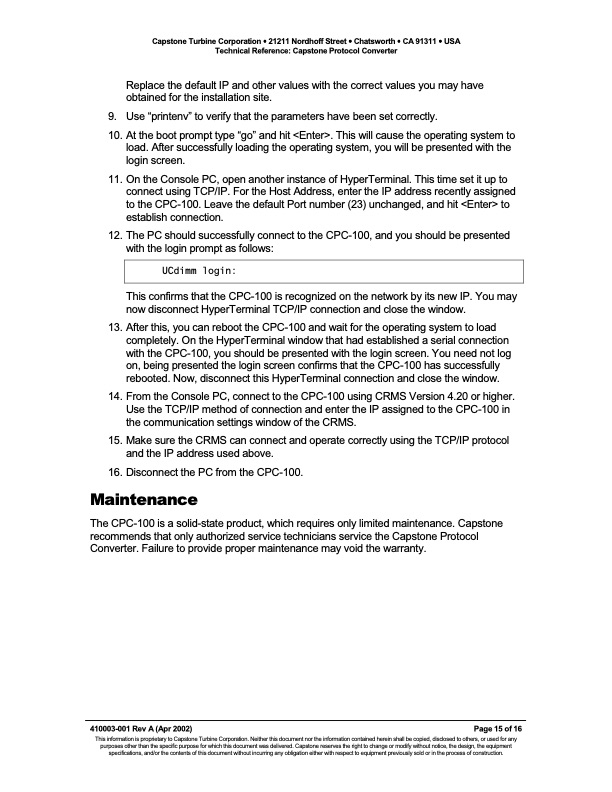

Text from PDF Page: 015

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Replace the default IP and other values with the correct values you may have obtained for the installation site. 9. Use ìprintenvî to verify that the parameters have been set correctly. 10. At the boot prompt type ìgoî and hit . This will cause the operating system to load. After successfully loading the operating system, you will be presented with the login screen. 11. On the Console PC, open another instance of HyperTerminal. This time set it up to connect using TCP/IP. For the Host Address, enter the IP address recently assigned to the CPC-100. Leave the default Port number (23) unchanged, and hit to establish connection. 12. The PC should successfully connect to the CPC-100, and you should be presented with the login prompt as follows: UCdimm login: This confirms that the CPC-100 is recognized on the network by its new IP. You may now disconnect HyperTerminal TCP/IP connection and close the window. 13. After this, you can reboot the CPC-100 and wait for the operating system to load completely. On the HyperTerminal window that had established a serial connection with the CPC-100, you should be presented with the login screen. You need not log on, being presented the login screen confirms that the CPC-100 has successfully rebooted. Now, disconnect this HyperTerminal connection and close the window. 14. From the Console PC, connect to the CPC-100 using CRMS Version 4.20 or higher. Use the TCP/IP method of connection and enter the IP assigned to the CPC-100 in the communication settings window of the CRMS. 15. Make sure the CRMS can connect and operate correctly using the TCP/IP protocol and the IP address used above. 16. Disconnect the PC from the CPC-100. Maintenance The CPC-100 is a solid-state product, which requires only limited maintenance. Capstone recommends that only authorized service technicians service the Capstone Protocol Converter. Failure to provide proper maintenance may void the warranty. 410003-001 Rev A (Apr 2002) Page 15 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
