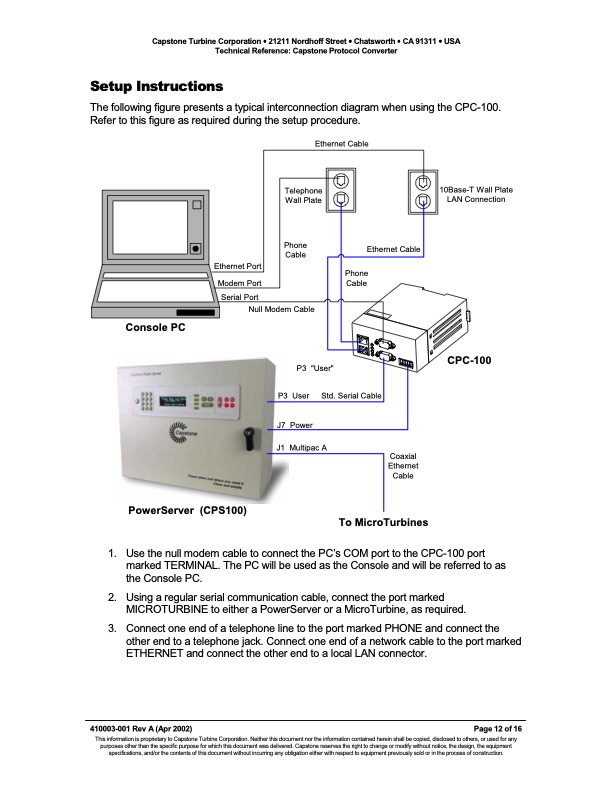

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Setup Instructions The following figure presents a typical interconnection diagram when using the CPC-100. Refer to this figure as required during the setup procedure. Telephone Wall Plate Phone Cable 10Base-T Wall Plate LAN Connection Ethernet Cable Ethernet Port Modem Port Serial Port Ethernet Cable Phone Cable Console PC Null Modem Cable P3 "User" CPC-100 P3 User Std. Serial Cable J7 Power J1 Multipac A Coaxial Ethernet Cable To MicroTurbines PowerServer (CPS100) 1. Use the null modem cable to connect the PCís COM port to the CPC-100 port marked TERMINAL. The PC will be used as the Console and will be referred to as the Console PC. 2. Using a regular serial communication cable, connect the port marked MICROTURBINE to either a PowerServer or a MicroTurbine, as required. 3. Connect one end of a telephone line to the port marked PHONE and connect the other end to a telephone jack. Connect one end of a network cable to the port marked ETHERNET and connect the other end to a local LAN connector. 410003-001 Rev A (Apr 2002) Page 12 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Protocol Converter
