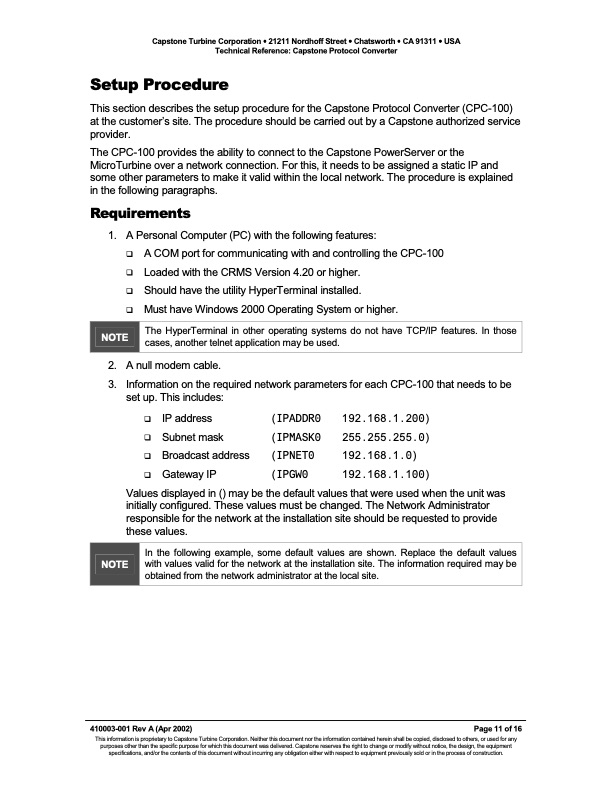

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Setup Procedure This section describes the setup procedure for the Capstone Protocol Converter (CPC-100) at the customerís site. The procedure should be carried out by a Capstone authorized service provider. The CPC-100 provides the ability to connect to the Capstone PowerServer or the MicroTurbine over a network connection. For this, it needs to be assigned a static IP and some other parameters to make it valid within the local network. The procedure is explained in the following paragraphs. Requirements 1. A Personal Computer (PC) with the following features: ! ACOMportforcommunicatingwithandcontrollingtheCPC-100 ! LoadedwiththeCRMSVersion4.20orhigher. ! ShouldhavetheutilityHyperTerminalinstalled. ! MusthaveWindows2000OperatingSystemorhigher. The HyperTerminal in other operating systems do not have TCP/IP features. In those cases, another telnet application may be used. 2. A null modem cable. 3. Information on the required network parameters for each CPC-100 that needs to be set up. This includes: NOTE ! IP address ! Subnet mask ! Broadcast address ! GatewayIP (IPADDR0 192.168.1.200) (IPMASK0 255.255.255.0) (IPNET0 192.168.1.0) (IPGW0 192.168.1.100) Values displayed in () may be the default values that were used when the unit was initially configured. These values must be changed. The Network Administrator responsible for the network at the installation site should be requested to provide these values. NOTE In the following example, some default values are shown. Replace the default values with values valid for the network at the installation site. The information required may be obtained from the network administrator at the local site. 410003-001 Rev A (Apr 2002) Page 11 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Protocol Converter
