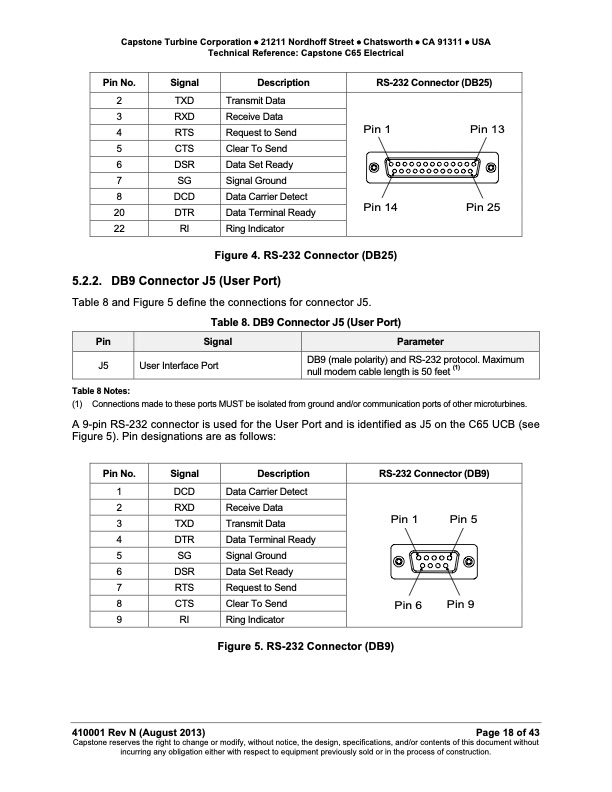

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Pin No. 2 3 4 5 6 7 8 20 22 Signal Description TXD Transmit Data RXD Receive Data RTS Request to Send CTS Clear To Send DSR Data Set Ready SG Signal Ground DCD Data Carrier Detect DTR Data Terminal Ready RI Ring Indicator RS-232 Connector (DB25) Pin 1 Pin 14 Pin 13 Pin 25 5.2.2. DB9 Connector J5 (User Port) Figure 4. RS-232 Connector (DB25) Table 8 and Figure 5 define the connections for connector J5. Table 8. DB9 Connector J5 (User Port) Pin Signal Parameter DB9 (male polarity) and RS-232 protocol. Maximum J5 User Interface Port null modem cable length is 50 feet (1) Table 8 Notes: (1) Connections made to these ports MUST be isolated from ground and/or communication ports of other microturbines. A 9-pin RS-232 connector is used for the User Port and is identified as J5 on the C65 UCB (see Figure 5). Pin designations are as follows: Pin No. 1 2 3 4 5 6 7 8 9 Signal DCD RXD TXD DTR SG DSR RTS CTS RI Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send Clear To Send Ring Indicator Figure 5. RS-232 Connector (DB9) RS-232 Connector (DB9) Pin 1 Pin 6 Pin 5 Pin 9 410001 Rev N (August 2013) Page 18 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
