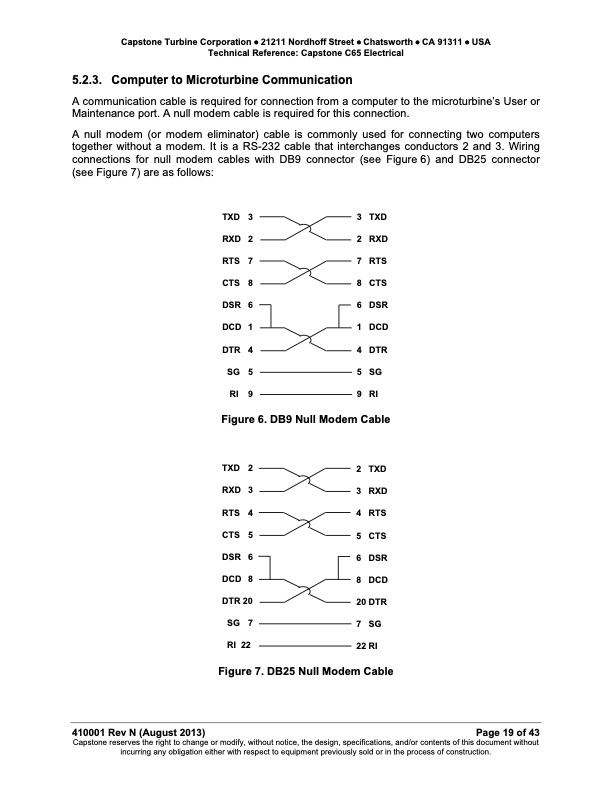

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 5.2.3. Computer to Microturbine Communication A communication cable is required for connection from a computer to the microturbine’s User or Maintenance port. A null modem cable is required for this connection. A null modem (or modem eliminator) cable is commonly used for connecting two computers together without a modem. It is a RS-232 cable that interchanges conductors 2 and 3. Wiring connections for null modem cables with DB9 connector (see Figure 6) and DB25 connector (see Figure 7) are as follows: TXD 3 RXD 2 RTS 7 CTS 8 DSR 6 DCD 1 DTR 4 3 TXD 2 RXD 7 RTS 8 CTS 6 DSR 1 DCD 4 DTR SG5 5 SG RI9 9 RI Figure 6. DB9 Null Modem Cable TXD 2 RXD 3 RTS 4 CTS 5 DSR 6 DCD 8 DTR 20 2 TXD 3 RXD 4 RTS 5 CTS 6 DSR 8 DCD 20 DTR SG7 7SG RI 22 22 RI Figure 7. DB25 Null Modem Cable 410001 Rev N (August 2013) Page 19 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
