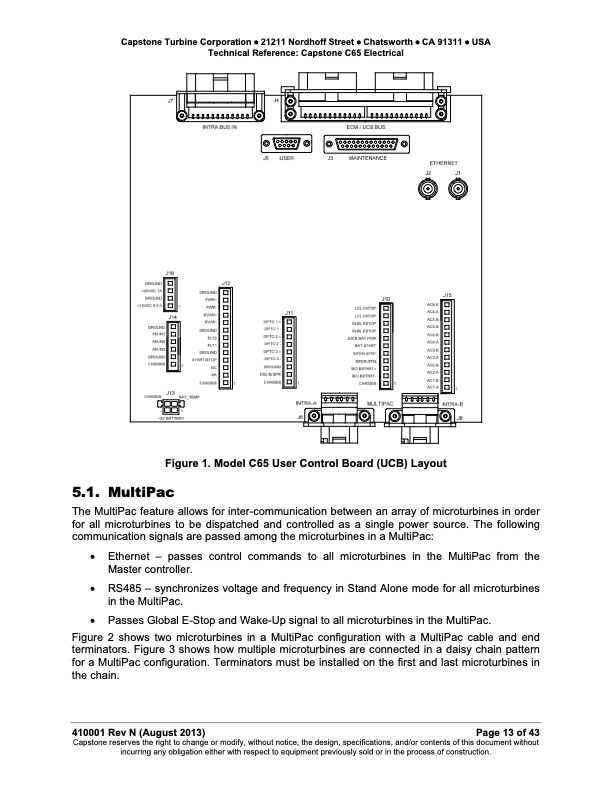

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Figure 1. Model C65 User Control Board (UCB) Layout 5.1. MultiPac The MultiPac feature allows for inter-communication between an array of microturbines in order for all microturbines to be dispatched and controlled as a single power source. The following communication signals are passed among the microturbines in a MultiPac: Ethernet – passes control commands to all microturbines in the MultiPac from the Master controller. RS485 – synchronizes voltage and frequency in Stand Alone mode for all microturbines in the MultiPac. Passes Global E-Stop and Wake-Up signal to all microturbines in the MultiPac. Figure 2 shows two microturbines in a MultiPac configuration with a MultiPac cable and end terminators. Figure 3 shows how multiple microturbines are connected in a daisy chain pattern for a MultiPac configuration. Terminators must be installed on the first and last microturbines in the chain. 410001 Rev N (August 2013) Page 13 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
