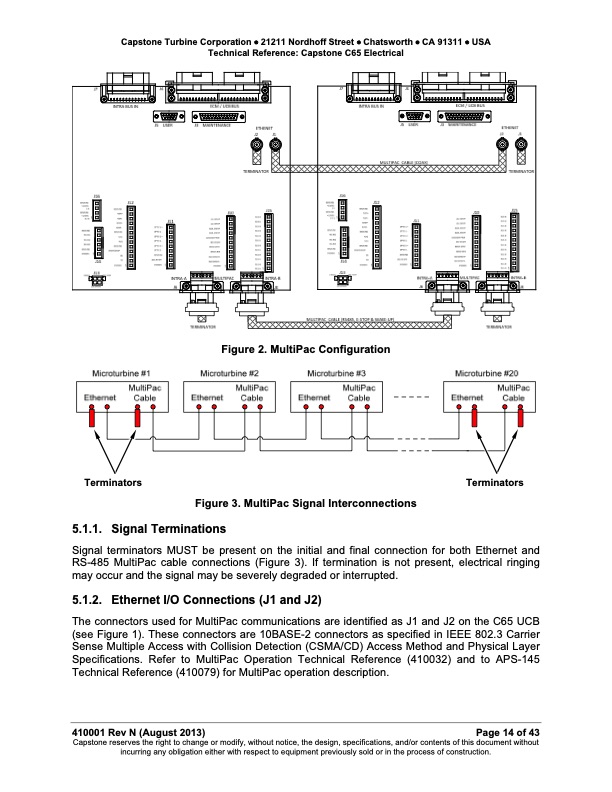

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Figure 2. MultiPac Configuration Terminators Terminators Figure 3. MultiPac Signal Interconnections 5.1.1. Signal Terminations Signal terminators MUST be present on the initial and final connection for both Ethernet and RS-485 MultiPac cable connections (Figure 3). If termination is not present, electrical ringing may occur and the signal may be severely degraded or interrupted. 5.1.2. Ethernet I/O Connections (J1 and J2) The connectors used for MultiPac communications are identified as J1 and J2 on the C65 UCB (see Figure 1). These connectors are 10BASE-2 connectors as specified in IEEE 802.3 Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications. Refer to MultiPac Operation Technical Reference (410032) and to APS-145 Technical Reference (410079) for MultiPac operation description. 410001 Rev N (August 2013) Page 14 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
