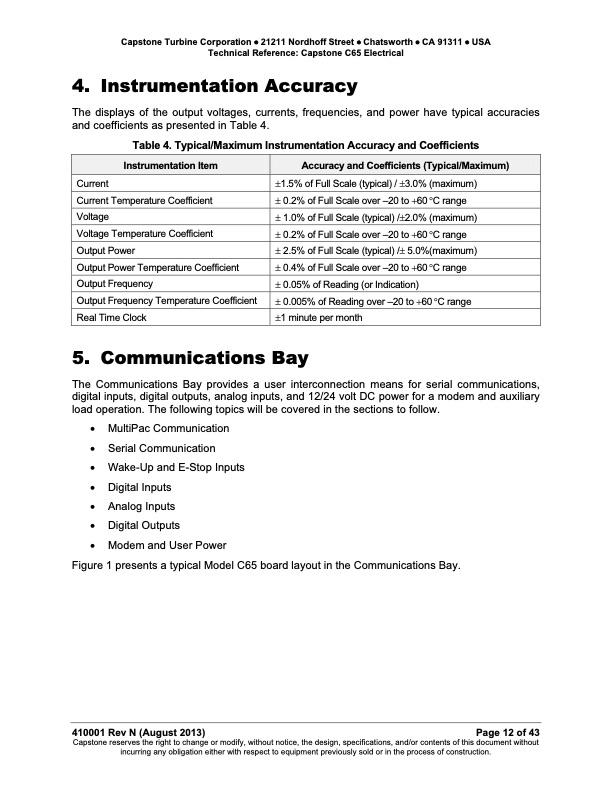

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 4. Instrumentation Accuracy The displays of the output voltages, currents, frequencies, and power have typical accuracies and coefficients as presented in Table 4. Table 4. Typical/Maximum Instrumentation Accuracy and Coefficients Instrumentation Item Accuracy and Coefficients (Typical/Maximum) Current Current Temperature Coefficient Voltage Voltage Temperature Coefficient Output Power Output Power Temperature Coefficient Output Frequency Output Frequency Temperature Coefficient Real Time Clock 1.5% of Full Scale (typical) / 3.0% (maximum) 0.2% of Full Scale over –20 to 60 C range 1.0% of Full Scale (typical) /2.0% (maximum) 0.2% of Full Scale over –20 to 60 C range 2.5% of Full Scale (typical) / 5.0%(maximum) 0.4% of Full Scale over –20 to 60 C range 0.05% of Reading (or Indication) 0.005% of Reading over –20 to 60 C range 1 minute per month 5. Communications Bay The Communications Bay provides a user interconnection means for serial communications, digital inputs, digital outputs, analog inputs, and 12/24 volt DC power for a modem and auxiliary load operation. The following topics will be covered in the sections to follow. MultiPac Communication Serial Communication Wake-Up and E-Stop Inputs Digital Inputs Analog Inputs Digital Outputs Modem and User Power Figure 1 presents a typical Model C65 board layout in the Communications Bay. 410001 Rev N (August 2013) Page 12 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
