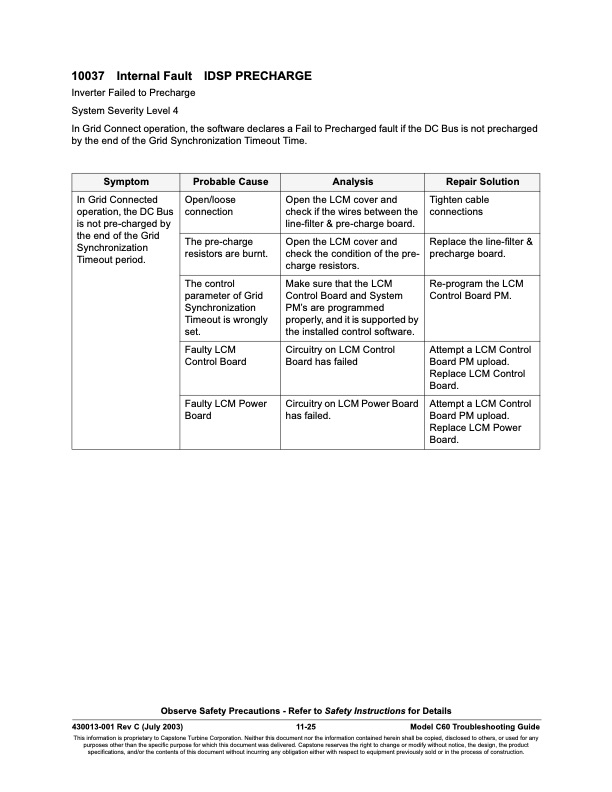

10037 Internal Fault IDSP PRECHARGE Inverter Failed to Precharge System Severity Level 4 In Grid Connect operation, the software declares a Fail to Precharged fault if the DC Bus is not precharged by the end of the Grid Synchronization Timeout Time. Symptom Probable Cause Analysis Repair Solution In Grid Connected operation, the DC Bus is not pre-charged by the end of the Grid Synchronization Timeout period. Open/loose connection Open the LCM cover and check if the wires between the line-filter & pre-charge board. Tighten cable connections The pre-charge resistors are burnt. Open the LCM cover and check the condition of the pre- charge resistors. Replace the line-filter & precharge board. The control parameter of Grid Synchronization Timeout is wrongly set. Make sure that the LCM Control Board and System PM’s are programmed properly, and it is supported by the installed control software. Re-program the LCM Control Board PM. Faulty LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board. Faulty LCM Power Board Circuitry on LCM Power Board has failed. Attempt a LCM Control Board PM upload. Replace LCM Power Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-25 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
