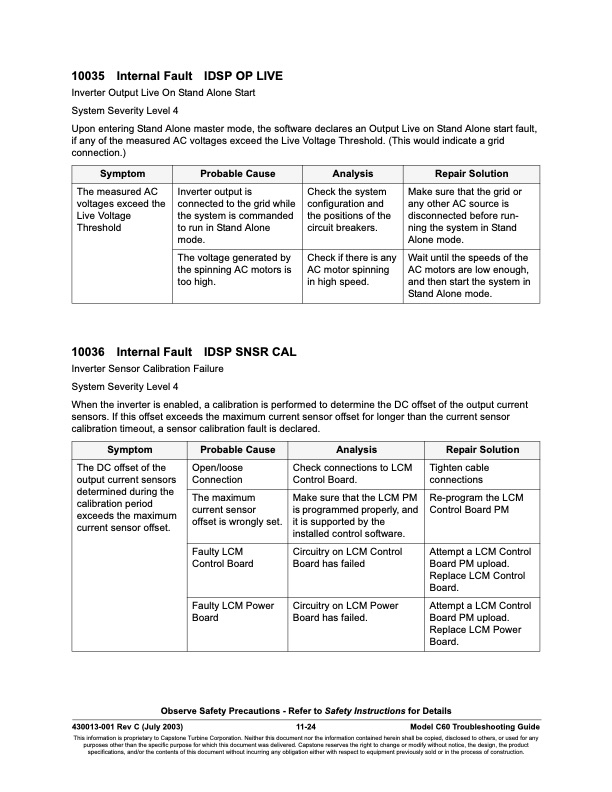

10035 Internal Fault IDSP OP LIVE Inverter Output Live On Stand Alone Start System Severity Level 4 Upon entering Stand Alone master mode, the software declares an Output Live on Stand Alone start fault, if any of the measured AC voltages exceed the Live Voltage Threshold. (This would indicate a grid connection.) Symptom Probable Cause Analysis Repair Solution The measured AC voltages exceed the Live Voltage Threshold Inverter output is connected to the grid while the system is commanded to run in Stand Alone mode. Check the system configuration and the positions of the circuit breakers. Make sure that the grid or any other AC source is disconnected before run- ning the system in Stand Alone mode. The voltage generated by the spinning AC motors is too high. Check if there is any AC motor spinning in high speed. Wait until the speeds of the AC motors are low enough, and then start the system in Stand Alone mode. 10036 Internal Fault IDSP SNSR CAL Inverter Sensor Calibration Failure System Severity Level 4 When the inverter is enabled, a calibration is performed to determine the DC offset of the output current sensors. If this offset exceeds the maximum current sensor offset for longer than the current sensor calibration timeout, a sensor calibration fault is declared. Symptom Probable Cause Analysis Repair Solution The DC offset of the output current sensors determined during the calibration period exceeds the maximum current sensor offset. Open/loose Connection Check connections to LCM Control Board. Tighten cable connections The maximum current sensor offset is wrongly set. Make sure that the LCM PM is programmed properly, and it is supported by the installed control software. Re-program the LCM Control Board PM Faulty LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board. Faulty LCM Power Board Circuitry on LCM Power Board has failed. Attempt a LCM Control Board PM upload. Replace LCM Power Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-24 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
