PDF Publication Title:

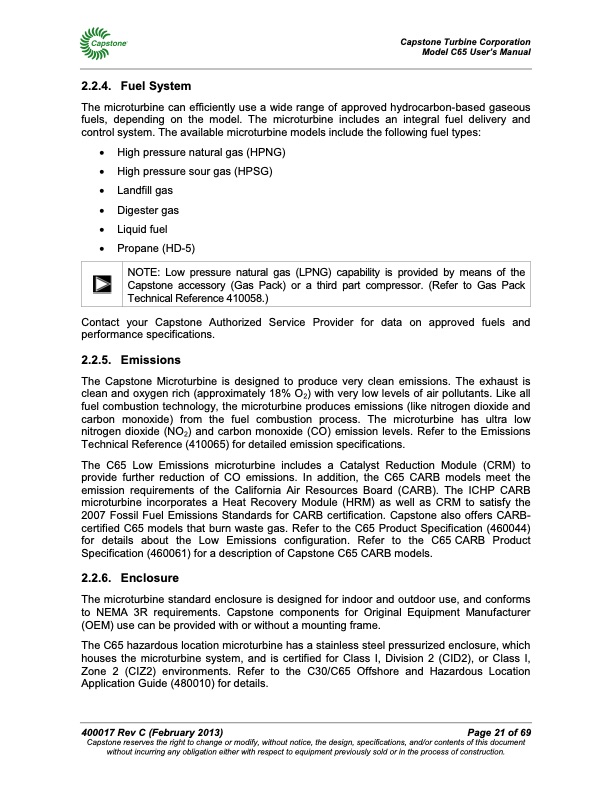

Text from PDF Page: 021
2.2.4. Fuel System The microturbine can efficiently use a wide range of approved hydrocarbon-based gaseous fuels, depending on the model. The microturbine includes an integral fuel delivery and control system. The available microturbine models include the following fuel types: • High pressure natural gas (HPNG) • High pressure sour gas (HPSG) • Landfill gas • Digester gas • Liquid fuel • Propane (HD-5) Contact your Capstone Authorized Service Provider for data on approved fuels and performance specifications. 2.2.5. Emissions The Capstone Microturbine is designed to produce very clean emissions. The exhaust is clean and oxygen rich (approximately 18% O2) with very low levels of air pollutants. Like all fuel combustion technology, the microturbine produces emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. The microturbine has ultra low nitrogen dioxide (NO2) and carbon monoxide (CO) emission levels. Refer to the Emissions Technical Reference (410065) for detailed emission specifications. The C65 Low Emissions microturbine includes a Catalyst Reduction Module (CRM) to provide further reduction of CO emissions. In addition, the C65 CARB models meet the emission requirements of the California Air Resources Board (CARB). The ICHP CARB microturbine incorporates a Heat Recovery Module (HRM) as well as CRM to satisfy the 2007 Fossil Fuel Emissions Standards for CARB certification. Capstone also offers CARB- certified C65 models that burn waste gas. Refer to the C65 Product Specification (460044) for details about the Low Emissions configuration. Refer to the C65 CARB Product Specification (460061) for a description of Capstone C65 CARB models. 2.2.6. Enclosure The microturbine standard enclosure is designed for indoor and outdoor use, and conforms to NEMA 3R requirements. Capstone components for Original Equipment Manufacturer (OEM) use can be provided with or without a mounting frame. The C65 hazardous location microturbine has a stainless steel pressurized enclosure, which houses the microturbine system, and is certified for Class I, Division 2 (CID2), or Class I, Zone 2 (CIZ2) environments. Refer to the C30/C65 Offshore and Hazardous Location Application Guide (480010) for details. 400017 Rev C (February 2013) Page 21 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C65 User’s Manual NOTE: Low pressure natural gas (LPNG) capability is provided by means of the Capstone accessory (Gas Pack) or a third part compressor. (Refer to Gas Pack Technical Reference 410058.)PDF Image | Capstone MicroTurbine Model C65 User's Manual
PDF Search Title:
Capstone MicroTurbine Model C65 User's ManualOriginal File Name Searched:
400017C_UM_C65_IND_PKG.pdfDIY PDF Search: Google It | Yahoo | Bing
