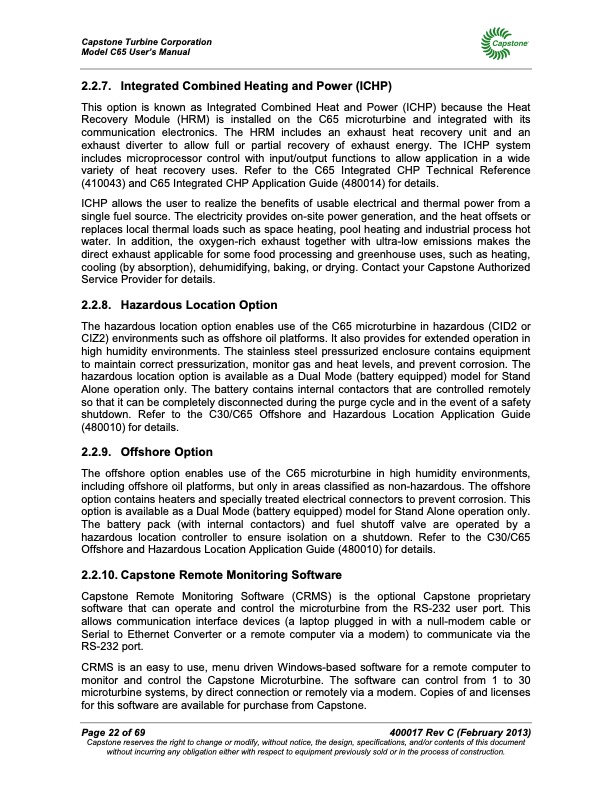

Capstone Turbine Corporation Model C65 User’s Manual 2.2.7. Integrated Combined Heating and Power (ICHP) This option is known as Integrated Combined Heat and Power (ICHP) because the Heat Recovery Module (HRM) is installed on the C65 microturbine and integrated with its communication electronics. The HRM includes an exhaust heat recovery unit and an exhaust diverter to allow full or partial recovery of exhaust energy. The ICHP system includes microprocessor control with input/output functions to allow application in a wide variety of heat recovery uses. Refer to the C65 Integrated CHP Technical Reference (410043) and C65 Integrated CHP Application Guide (480014) for details. ICHP allows the user to realize the benefits of usable electrical and thermal power from a single fuel source. The electricity provides on-site power generation, and the heat offsets or replaces local thermal loads such as space heating, pool heating and industrial process hot water. In addition, the oxygen-rich exhaust together with ultra-low emissions makes the direct exhaust applicable for some food processing and greenhouse uses, such as heating, cooling (by absorption), dehumidifying, baking, or drying. Contact your Capstone Authorized Service Provider for details. 2.2.8. Hazardous Location Option The hazardous location option enables use of the C65 microturbine in hazardous (CID2 or CIZ2) environments such as offshore oil platforms. It also provides for extended operation in high humidity environments. The stainless steel pressurized enclosure contains equipment to maintain correct pressurization, monitor gas and heat levels, and prevent corrosion. The hazardous location option is available as a Dual Mode (battery equipped) model for Stand Alone operation only. The battery contains internal contactors that are controlled remotely so that it can be completely disconnected during the purge cycle and in the event of a safety shutdown. Refer to the C30/C65 Offshore and Hazardous Location Application Guide (480010) for details. 2.2.9. Offshore Option The offshore option enables use of the C65 microturbine in high humidity environments, including offshore oil platforms, but only in areas classified as non-hazardous. The offshore option contains heaters and specially treated electrical connectors to prevent corrosion. This option is available as a Dual Mode (battery equipped) model for Stand Alone operation only. The battery pack (with internal contactors) and fuel shutoff valve are operated by a hazardous location controller to ensure isolation on a shutdown. Refer to the C30/C65 Offshore and Hazardous Location Application Guide (480010) for details. 2.2.10. Capstone Remote Monitoring Software Capstone Remote Monitoring Software (CRMS) is the optional Capstone proprietary software that can operate and control the microturbine from the RS-232 user port. This allows communication interface devices (a laptop plugged in with a null-modem cable or Serial to Ethernet Converter or a remote computer via a modem) to communicate via the RS-232 port. CRMS is an easy to use, menu driven Windows-based software for a remote computer to monitor and control the Capstone Microturbine. The software can control from 1 to 30 microturbine systems, by direct connection or remotely via a modem. Copies of and licenses for this software are available for purchase from Capstone. Page 22 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
