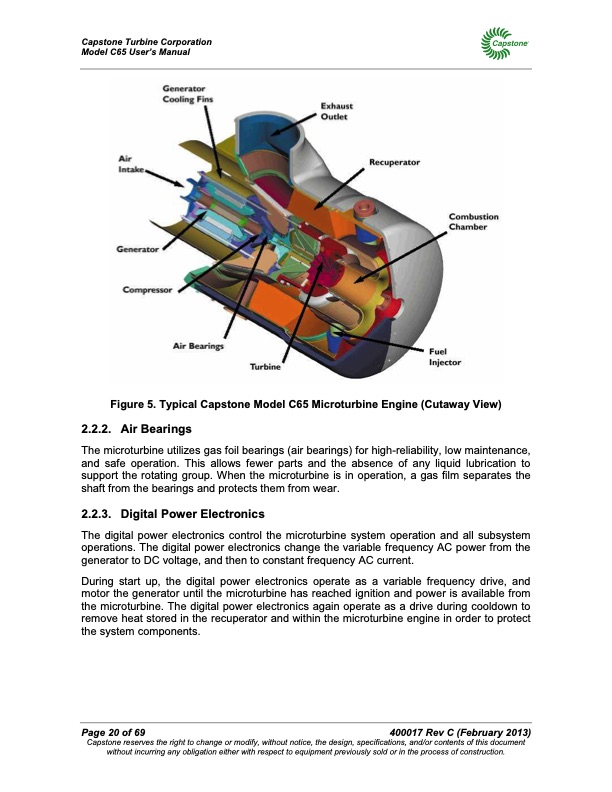

Capstone Turbine Corporation Model C65 User’s Manual Figure 5. Typical Capstone Model C65 Microturbine Engine (Cutaway View) 2.2.2. Air Bearings The microturbine utilizes gas foil bearings (air bearings) for high-reliability, low maintenance, and safe operation. This allows fewer parts and the absence of any liquid lubrication to support the rotating group. When the microturbine is in operation, a gas film separates the shaft from the bearings and protects them from wear. 2.2.3. Digital Power Electronics The digital power electronics control the microturbine system operation and all subsystem operations. The digital power electronics change the variable frequency AC power from the generator to DC voltage, and then to constant frequency AC current. During start up, the digital power electronics operate as a variable frequency drive, and motor the generator until the microturbine has reached ignition and power is available from the microturbine. The digital power electronics again operate as a drive during cooldown to remove heat stored in the recuperator and within the microturbine engine in order to protect the system components. Page 20 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
