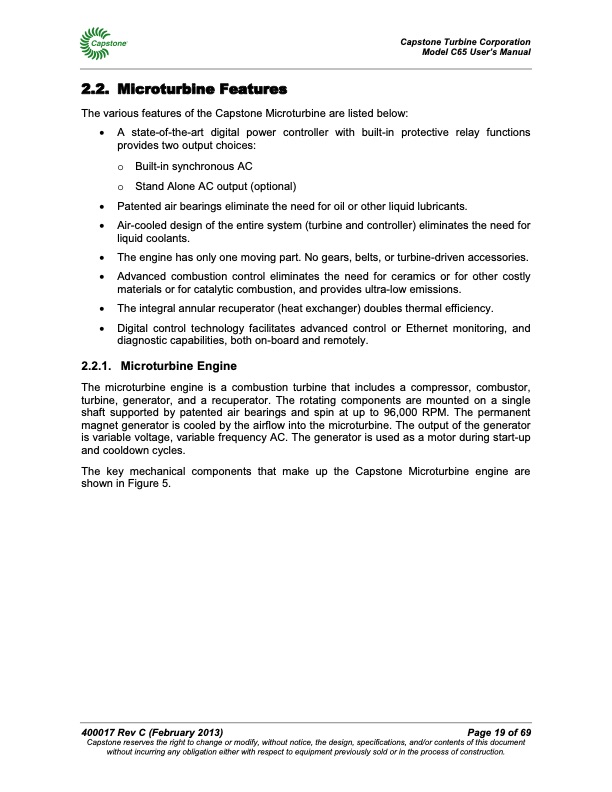

2.2. Microturbine Features The various features of the Capstone Microturbine are listed below: • A state-of-the-art digital power controller with built-in protective relay functions provides two output choices: o Built-insynchronousAC o StandAloneACoutput(optional) • Patented air bearings eliminate the need for oil or other liquid lubricants. • Air-cooled design of the entire system (turbine and controller) eliminates the need for liquid coolants. • The engine has only one moving part. No gears, belts, or turbine-driven accessories. • Advanced combustion control eliminates the need for ceramics or for other costly materials or for catalytic combustion, and provides ultra-low emissions. • The integral annular recuperator (heat exchanger) doubles thermal efficiency. • Digital control technology facilitates advanced control or Ethernet monitoring, and diagnostic capabilities, both on-board and remotely. 2.2.1. Microturbine Engine The microturbine engine is a combustion turbine that includes a compressor, combustor, turbine, generator, and a recuperator. The rotating components are mounted on a single shaft supported by patented air bearings and spin at up to 96,000 RPM. The permanent magnet generator is cooled by the airflow into the microturbine. The output of the generator is variable voltage, variable frequency AC. The generator is used as a motor during start-up and cooldown cycles. The key mechanical components that make up the Capstone Microturbine engine are shown in Figure 5. Capstone Turbine Corporation Model C65 User’s Manual 400017 Rev C (February 2013) Page 19 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
