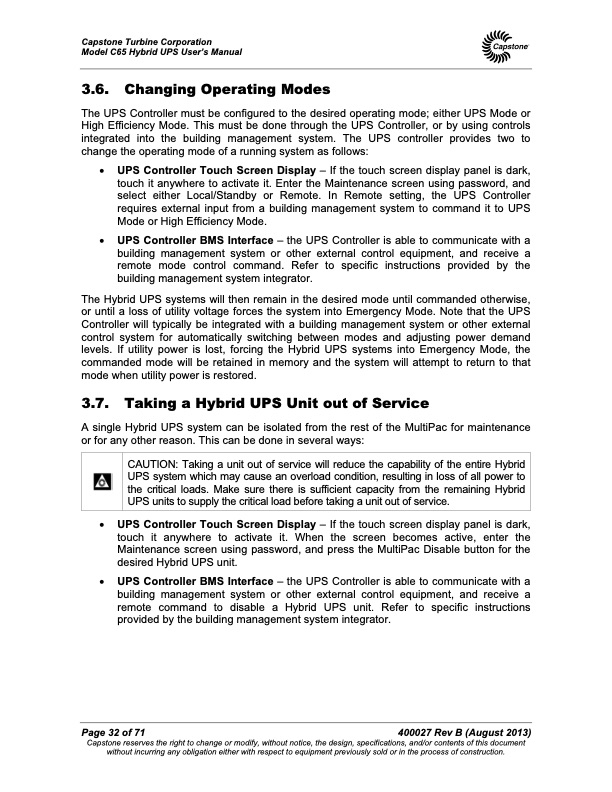

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 3.6. Changing Operating Modes The UPS Controller must be configured to the desired operating mode; either UPS Mode or High Efficiency Mode. This must be done through the UPS Controller, or by using controls integrated into the building management system. The UPS controller provides two to change the operating mode of a running system as follows: UPS Controller Touch Screen Display – If the touch screen display panel is dark, touch it anywhere to activate it. Enter the Maintenance screen using password, and select either Local/Standby or Remote. In Remote setting, the UPS Controller requires external input from a building management system to command it to UPS Mode or High Efficiency Mode. UPS Controller BMS Interface – the UPS Controller is able to communicate with a building management system or other external control equipment, and receive a remote mode control command. Refer to specific instructions provided by the building management system integrator. The Hybrid UPS systems will then remain in the desired mode until commanded otherwise, or until a loss of utility voltage forces the system into Emergency Mode. Note that the UPS Controller will typically be integrated with a building management system or other external control system for automatically switching between modes and adjusting power demand levels. If utility power is lost, forcing the Hybrid UPS systems into Emergency Mode, the commanded mode will be retained in memory and the system will attempt to return to that mode when utility power is restored. 3.7. Taking a Hybrid UPS Unit out of Service A single Hybrid UPS system can be isolated from the rest of the MultiPac for maintenance or for any other reason. This can be done in several ways: UPS Controller Touch Screen Display – If the touch screen display panel is dark, touch it anywhere to activate it. When the screen becomes active, enter the Maintenance screen using password, and press the MultiPac Disable button for the desired Hybrid UPS unit. UPS Controller BMS Interface – the UPS Controller is able to communicate with a building management system or other external control equipment, and receive a remote command to disable a Hybrid UPS unit. Refer to specific instructions provided by the building management system integrator. Page 32 of 71 400027 Rev B (August 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. CAUTION: Taking a unit out of service will reduce the capability of the entire Hybrid UPS system which may cause an overload condition, resulting in loss of all power to the critical loads. Make sure there is sufficient capacity from the remaining Hybrid UPS units to supply the critical load before taking a unit out of service.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
