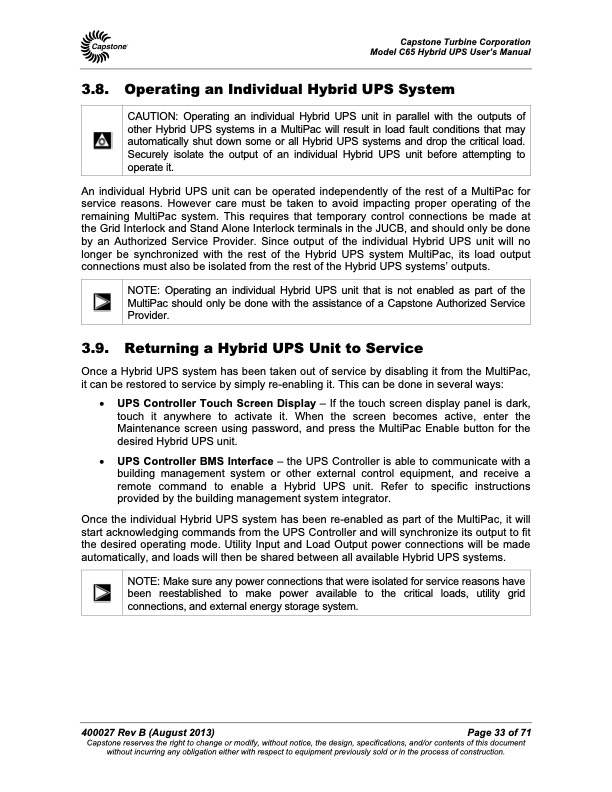

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 3.8. Operating an Individual Hybrid UPS System An individual Hybrid UPS unit can be operated independently of the rest of a MultiPac for service reasons. However care must be taken to avoid impacting proper operating of the remaining MultiPac system. This requires that temporary control connections be made at the Grid Interlock and Stand Alone Interlock terminals in the JUCB, and should only be done by an Authorized Service Provider. Since output of the individual Hybrid UPS unit will no longer be synchronized with the rest of the Hybrid UPS system MultiPac, its load output connections must also be isolated from the rest of the Hybrid UPS systems’ outputs. 3.9. Returning a Hybrid UPS Unit to Service Once a Hybrid UPS system has been taken out of service by disabling it from the MultiPac, it can be restored to service by simply re-enabling it. This can be done in several ways: UPS Controller Touch Screen Display – If the touch screen display panel is dark, touch it anywhere to activate it. When the screen becomes active, enter the Maintenance screen using password, and press the MultiPac Enable button for the desired Hybrid UPS unit. UPS Controller BMS Interface – the UPS Controller is able to communicate with a building management system or other external control equipment, and receive a remote command to enable a Hybrid UPS unit. Refer to specific instructions provided by the building management system integrator. Once the individual Hybrid UPS system has been re-enabled as part of the MultiPac, it will start acknowledging commands from the UPS Controller and will synchronize its output to fit the desired operating mode. Utility Input and Load Output power connections will be made automatically, and loads will then be shared between all available Hybrid UPS systems. CAUTION: Operating an individual Hybrid UPS unit in parallel with the outputs of other Hybrid UPS systems in a MultiPac will result in load fault conditions that may automatically shut down some or all Hybrid UPS systems and drop the critical load. Securely isolate the output of an individual Hybrid UPS unit before attempting to operate it. NOTE: Operating an individual Hybrid UPS unit that is not enabled as part of the MultiPac should only be done with the assistance of a Capstone Authorized Service Provider. NOTE: Make sure any power connections that were isolated for service reasons have been reestablished to make power available to the critical loads, utility grid connections, and external energy storage system. 400027 Rev B (August 2013) Page 33 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
