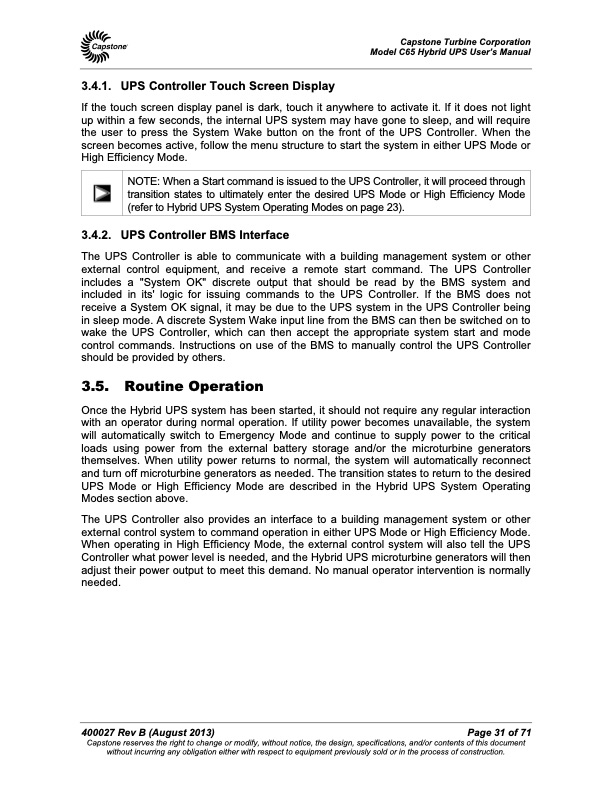

If the touch screen display panel is dark, touch it anywhere to activate it. If it does not light up within a few seconds, the internal UPS system may have gone to sleep, and will require the user to press the System Wake button on the front of the UPS Controller. When the screen becomes active, follow the menu structure to start the system in either UPS Mode or High Efficiency Mode. 3.4.2. UPS Controller BMS Interface The UPS Controller is able to communicate with a building management system or other external control equipment, and receive a remote start command. The UPS Controller includes a "System OK" discrete output that should be read by the BMS system and included in its' logic for issuing commands to the UPS Controller. If the BMS does not receive a System OK signal, it may be due to the UPS system in the UPS Controller being in sleep mode. A discrete System Wake input line from the BMS can then be switched on to wake the UPS Controller, which can then accept the appropriate system start and mode control commands. Instructions on use of the BMS to manually control the UPS Controller should be provided by others. 3.5. Routine Operation Once the Hybrid UPS system has been started, it should not require any regular interaction with an operator during normal operation. If utility power becomes unavailable, the system will automatically switch to Emergency Mode and continue to supply power to the critical loads using power from the external battery storage and/or the microturbine generators themselves. When utility power returns to normal, the system will automatically reconnect and turn off microturbine generators as needed. The transition states to return to the desired UPS Mode or High Efficiency Mode are described in the Hybrid UPS System Operating Modes section above. The UPS Controller also provides an interface to a building management system or other external control system to command operation in either UPS Mode or High Efficiency Mode. When operating in High Efficiency Mode, the external control system will also tell the UPS Controller what power level is needed, and the Hybrid UPS microturbine generators will then adjust their power output to meet this demand. No manual operator intervention is normally needed. Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 3.4.1. UPS Controller Touch Screen Display NOTE: When a Start command is issued to the UPS Controller, it will proceed through transition states to ultimately enter the desired UPS Mode or High Efficiency Mode (refer to Hybrid UPS System Operating Modes on page 23). 400027 Rev B (August 2013) Page 31 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
