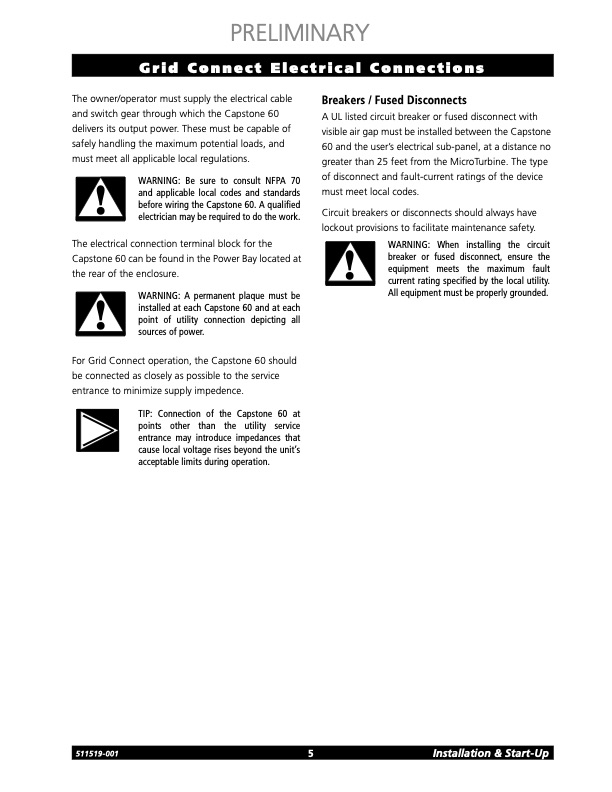

PRELIMINARY Grid Connect Electrical Connections The owner/operator must supply the electrical cable and switch gear through which the Capstone 60 delivers its output power. These must be capable of safely handling the maximum potential loads, and must meet all applicable local regulations. WARNING: Be sure to consult NFPA 70 and applicable local codes and standards before wiring the Capstone 60. A qualified electrician may be required to do the work. The electrical connection terminal block for the Capstone 60 can be found in the Power Bay located at the rear of the enclosure. WARNING: A permanent plaque must be installed at each Capstone 60 and at each point of utility connection depicting all sources of power. For Grid Connect operation, the Capstone 60 should be connected as closely as possible to the service entrance to minimize supply impedence. TIP: Connection of the Capstone 60 at points other than the utility service entrance may introduce impedances that cause local voltage rises beyond the unit’s acceptable limits during operation. Breakers / Fused Disconnects A UL listed circuit breaker or fused disconnect with visible air gap must be installed between the Capstone 60 and the user’s electrical sub-panel, at a distance no greater than 25 feet from the MicroTurbine. The type of disconnect and fault-current ratings of the device must meet local codes. Circuit breakers or disconnects should always have lockout provisions to facilitate maintenance safety. WARNING: When installing the circuit breaker or fused disconnect, ensure the equipment meets the maximum fault current rating specified by the local utility. All equipment must be properly grounded. 511519-001 5 Installation & Start-UpPDF Image | C60 Mech
