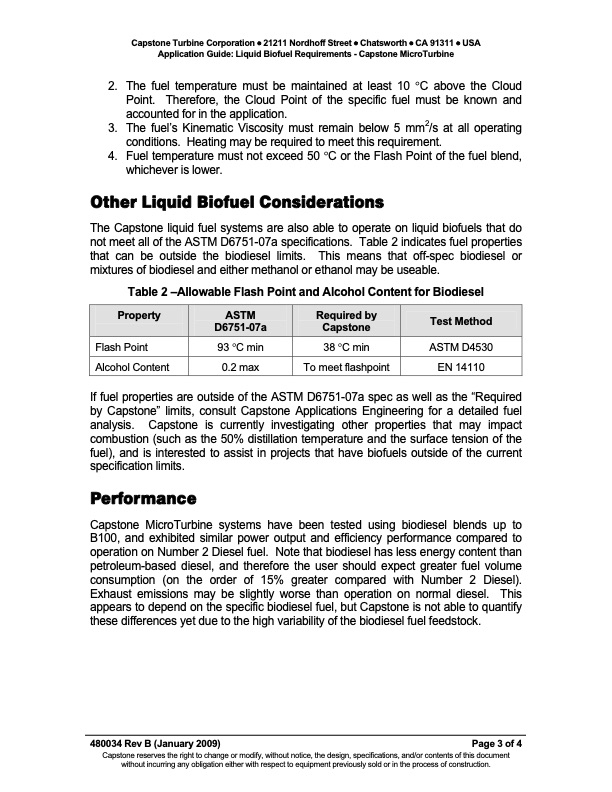

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Liquid Biofuel Requirements - Capstone MicroTurbine 2. The fuel temperature must be maintained at least 10 °C above the Cloud Point. Therefore, the Cloud Point of the specific fuel must be known and accounted for in the application. 3. The fuel’s Kinematic Viscosity must remain below 5 mm2/s at all operating conditions. Heating may be required to meet this requirement. 4. Fueltemperaturemustnotexceed50°CortheFlashPointofthefuelblend, whichever is lower. Other Liquid Biofuel Considerations The Capstone liquid fuel systems are also able to operate on liquid biofuels that do not meet all of the ASTM D6751-07a specifications. Table 2 indicates fuel properties that can be outside the biodiesel limits. This means that off-spec biodiesel or mixtures of biodiesel and either methanol or ethanol may be useable. Table 2 –Allowable Flash Point and Alcohol Content for Biodiesel Flash Point 93 °C min 38 °C min ASTM D4530 Alcohol Content 0.2 max To meet flashpoint EN 14110 If fuel properties are outside of the ASTM D6751-07a spec as well as the “Required by Capstone” limits, consult Capstone Applications Engineering for a detailed fuel analysis. Capstone is currently investigating other properties that may impact combustion (such as the 50% distillation temperature and the surface tension of the fuel), and is interested to assist in projects that have biofuels outside of the current specification limits. Performance Capstone MicroTurbine systems have been tested using biodiesel blends up to B100, and exhibited similar power output and efficiency performance compared to operation on Number 2 Diesel fuel. Note that biodiesel has less energy content than petroleum-based diesel, and therefore the user should expect greater fuel volume consumption (on the order of 15% greater compared with Number 2 Diesel). Exhaust emissions may be slightly worse than operation on normal diesel. This appears to depend on the specific biodiesel fuel, but Capstone is not able to quantify these differences yet due to the high variability of the biodiesel fuel feedstock. 480034 Rev B (January 2009) Page 3 of 4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Property ASTM D6751-07a Required by Capstone Test MethodPDF Image | Application Guide Liquid Biofuel Requirements - Capstone MicroTurbine
PDF Search Title:
Application Guide Liquid Biofuel Requirements - Capstone MicroTurbineOriginal File Name Searched:
480034B_Liquid_Biofuel_AG.pdfDIY PDF Search: Google It | Yahoo | Bing
