Text from PDF Page: 013

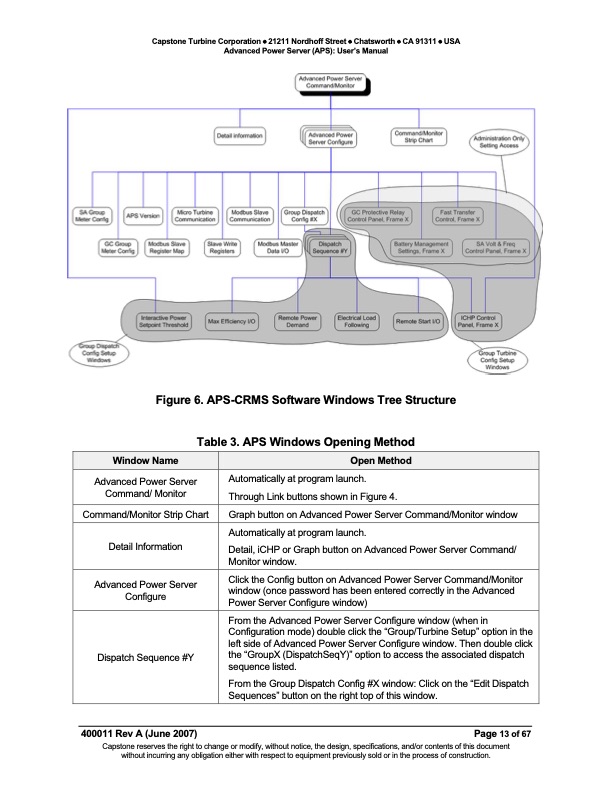

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 6. APS-CRMS Software Windows Tree Structure Table 3. APS Windows Opening Method Window Name Open Method Advanced Power Server Command/ Monitor Command/Monitor Strip Chart Automatically at program launch. Through Link buttons shown in Figure 4. Graph button on Advanced Power Server Command/Monitor window Detail Information Automatically at program launch. Detail, iCHP or Graph button on Advanced Power Server Command/ Monitor window. Advanced Power Server Configure Click the Config button on Advanced Power Server Command/Monitor window (once password has been entered correctly in the Advanced Power Server Configure window) Dispatch Sequence #Y From the Advanced Power Server Configure window (when in Configuration mode) double click the “Group/Turbine Setup” option in the left side of Advanced Power Server Configure window. Then double click the “GroupX (DispatchSeqY)” option to access the associated dispatch sequence listed. From the Group Dispatch Config #X window: Click on the “Edit Dispatch Sequences” button on the right top of this window. 400011 Rev A (June 2007) Page 13 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
