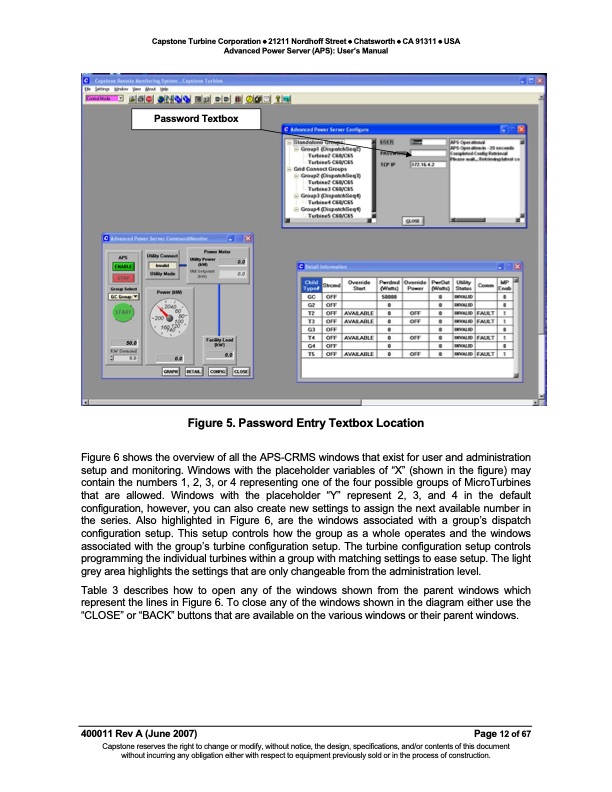

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Password Textbox Figure 5. Password Entry Textbox Location Figure 6 shows the overview of all the APS-CRMS windows that exist for user and administration setup and monitoring. Windows with the placeholder variables of “X” (shown in the figure) may contain the numbers 1, 2, 3, or 4 representing one of the four possible groups of MicroTurbines that are allowed. Windows with the placeholder “Y” represent 2, 3, and 4 in the default configuration, however, you can also create new settings to assign the next available number in the series. Also highlighted in Figure 6, are the windows associated with a group’s dispatch configuration setup. This setup controls how the group as a whole operates and the windows associated with the group’s turbine configuration setup. The turbine configuration setup controls programming the individual turbines within a group with matching settings to ease setup. The light grey area highlights the settings that are only changeable from the administration level. Table 3 describes how to open any of the windows shown from the parent windows which represent the lines in Figure 6. To close any of the windows shown in the diagram either use the “CLOSE” or “BACK” buttons that are available on the various windows or their parent windows. 400011 Rev A (June 2007) Page 12 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
