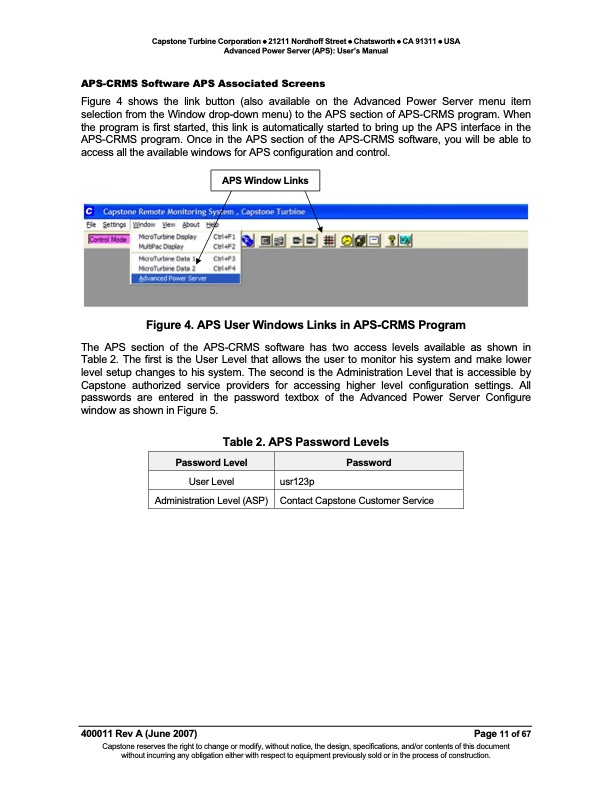

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual APS-CRMS Software APS Associated Screens Figure 4 shows the link button (also available on the Advanced Power Server menu item selection from the Window drop-down menu) to the APS section of APS-CRMS program. When the program is first started, this link is automatically started to bring up the APS interface in the APS-CRMS program. Once in the APS section of the APS-CRMS software, you will be able to access all the available windows for APS configuration and control. APS Window Links Figure 4. APS User Windows Links in APS-CRMS Program The APS section of the APS-CRMS software has two access levels available as shown in Table 2. The first is the User Level that allows the user to monitor his system and make lower level setup changes to his system. The second is the Administration Level that is accessible by Capstone authorized service providers for accessing higher level configuration settings. All passwords are entered in the password textbox of the Advanced Power Server Configure window as shown in Figure 5. Table 2. APS Password Levels Password Level Password User Level Administration Level (ASP) usr123p Contact Capstone Customer Service 400011 Rev A (June 2007) Page 11 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
PDF Search Title:
ADVANCED POWER SERVER (APS) USER’S MANUALOriginal File Name Searched:
400011_APS_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
