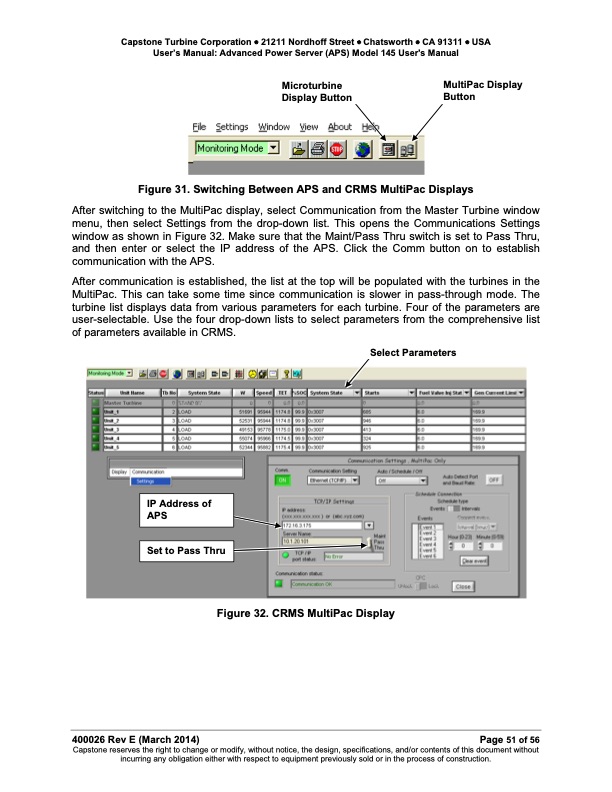

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual Microturbine MultiPac Display Display Button Button Figure 31. Switching Between APS and CRMS MultiPac Displays After switching to the MultiPac display, select Communication from the Master Turbine window menu, then select Settings from the drop-down list. This opens the Communications Settings window as shown in Figure 32. Make sure that the Maint/Pass Thru switch is set to Pass Thru, and then enter or select the IP address of the APS. Click the Comm button on to establish communication with the APS. After communication is established, the list at the top will be populated with the turbines in the MultiPac. This can take some time since communication is slower in pass-through mode. The turbine list displays data from various parameters for each turbine. Four of the parameters are user-selectable. Use the four drop-down lists to select parameters from the comprehensive list of parameters available in CRMS. Select Parameters Set to Pass Thru 400026 Rev E (March 2014) Page 51 of 56 IP Address of APS Figure 32. CRMS MultiPac Display Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
