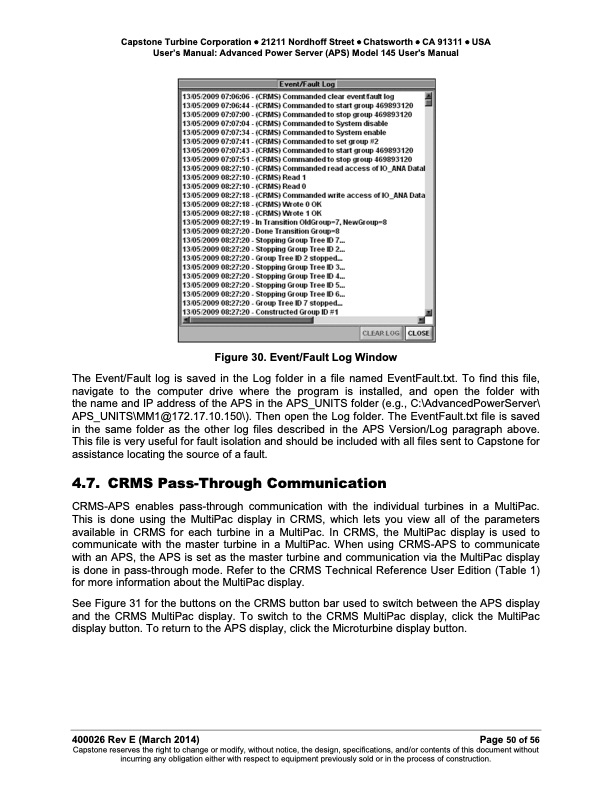

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual Figure 30. Event/Fault Log Window The Event/Fault log is saved in the Log folder in a file named EventFault.txt. To find this file, navigate to the computer drive where the program is installed, and open the folder with the name and IP address of the APS in the APS_UNITS folder (e.g., C:\AdvancedPowerServer\ APS_UNITS\MM1@172.17.10.150\). Then open the Log folder. The EventFault.txt file is saved in the same folder as the other log files described in the APS Version/Log paragraph above. This file is very useful for fault isolation and should be included with all files sent to Capstone for assistance locating the source of a fault. 4.7. CRMS Pass-Through Communication CRMS-APS enables pass-through communication with the individual turbines in a MultiPac. This is done using the MultiPac display in CRMS, which lets you view all of the parameters available in CRMS for each turbine in a MultiPac. In CRMS, the MultiPac display is used to communicate with the master turbine in a MultiPac. When using CRMS-APS to communicate with an APS, the APS is set as the master turbine and communication via the MultiPac display is done in pass-through mode. Refer to the CRMS Technical Reference User Edition (Table 1) for more information about the MultiPac display. See Figure 31 for the buttons on the CRMS button bar used to switch between the APS display and the CRMS MultiPac display. To switch to the CRMS MultiPac display, click the MultiPac display button. To return to the APS display, click the Microturbine display button. 400026 Rev E (March 2014) Page 50 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
