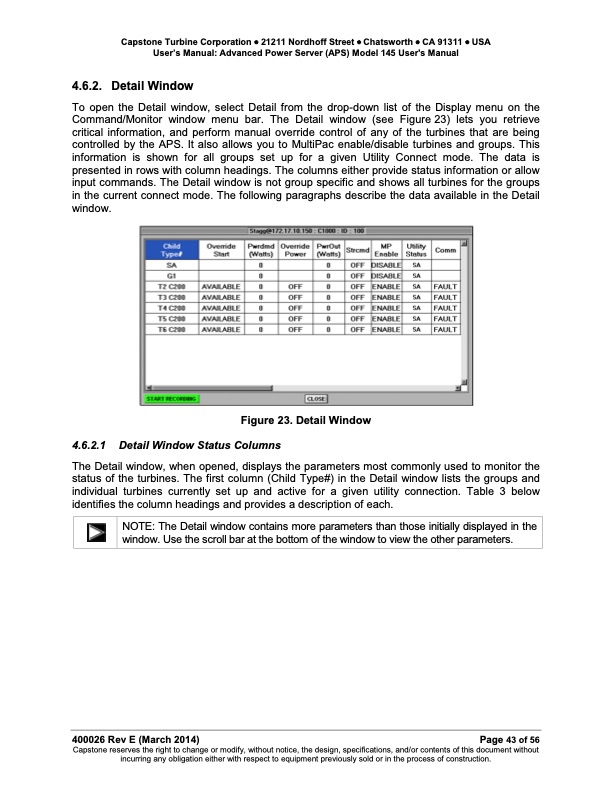

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual 4.6.2. Detail Window To open the Detail window, select Detail from the drop-down list of the Display menu on the Command/Monitor window menu bar. The Detail window (see Figure 23) lets you retrieve critical information, and perform manual override control of any of the turbines that are being controlled by the APS. It also allows you to MultiPac enable/disable turbines and groups. This information is shown for all groups set up for a given Utility Connect mode. The data is presented in rows with column headings. The columns either provide status information or allow input commands. The Detail window is not group specific and shows all turbines for the groups in the current connect mode. The following paragraphs describe the data available in the Detail window. Figure 23. Detail Window 4.6.2.1 Detail Window Status Columns The Detail window, when opened, displays the parameters most commonly used to monitor the status of the turbines. The first column (Child Type#) in the Detail window lists the groups and individual turbines currently set up and active for a given utility connection. Table 3 below identifies the column headings and provides a description of each. NOTE: The Detail window contains more parameters than those initially displayed in the window. Use the scroll bar at the bottom of the window to view the other parameters. 400026 Rev E (March 2014) Page 43 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
