Text from PDF Page: 042

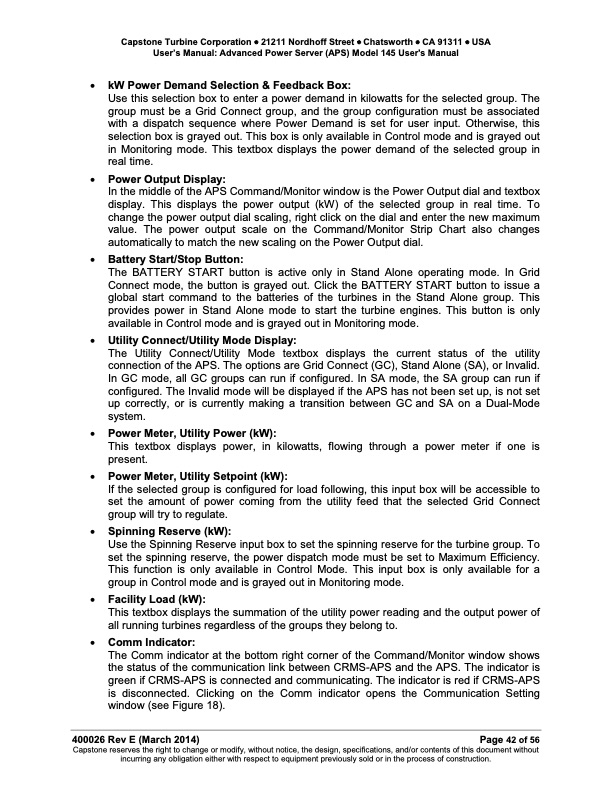

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual • kW Power Demand Selection & Feedback Box: Use this selection box to enter a power demand in kilowatts for the selected group. The group must be a Grid Connect group, and the group configuration must be associated with a dispatch sequence where Power Demand is set for user input. Otherwise, this selection box is grayed out. This box is only available in Control mode and is grayed out in Monitoring mode. This textbox displays the power demand of the selected group in real time. • Power Output Display: In the middle of the APS Command/Monitor window is the Power Output dial and textbox display. This displays the power output (kW) of the selected group in real time. To change the power output dial scaling, right click on the dial and enter the new maximum value. The power output scale on the Command/Monitor Strip Chart also changes automatically to match the new scaling on the Power Output dial. • Battery Start/Stop Button: The BATTERY START button is active only in Stand Alone operating mode. In Grid Connect mode, the button is grayed out. Click the BATTERY START button to issue a global start command to the batteries of the turbines in the Stand Alone group. This provides power in Stand Alone mode to start the turbine engines. This button is only available in Control mode and is grayed out in Monitoring mode. • Utility Connect/Utility Mode Display: The Utility Connect/Utility Mode textbox displays the current status of the utility connection of the APS. The options are Grid Connect (GC), Stand Alone (SA), or Invalid. In GC mode, all GC groups can run if configured. In SA mode, the SA group can run if configured. The Invalid mode will be displayed if the APS has not been set up, is not set up correctly, or is currently making a transition between GC and SA on a Dual-Mode system. • Power Meter, Utility Power (kW): This textbox displays power, in kilowatts, flowing through a power meter if one is present. • Power Meter, Utility Setpoint (kW): If the selected group is configured for load following, this input box will be accessible to set the amount of power coming from the utility feed that the selected Grid Connect group will try to regulate. • Spinning Reserve (kW): Use the Spinning Reserve input box to set the spinning reserve for the turbine group. To set the spinning reserve, the power dispatch mode must be set to Maximum Efficiency. This function is only available in Control Mode. This input box is only available for a group in Control mode and is grayed out in Monitoring mode. • Facility Load (kW): This textbox displays the summation of the utility power reading and the output power of all running turbines regardless of the groups they belong to. • Comm Indicator: The Comm indicator at the bottom right corner of the Command/Monitor window shows the status of the communication link between CRMS-APS and the APS. The indicator is green if CRMS-APS is connected and communicating. The indicator is red if CRMS-APS is disconnected. Clicking on the Comm indicator opens the Communication Setting window (see Figure 18). 400026 Rev E (March 2014) Page 42 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
