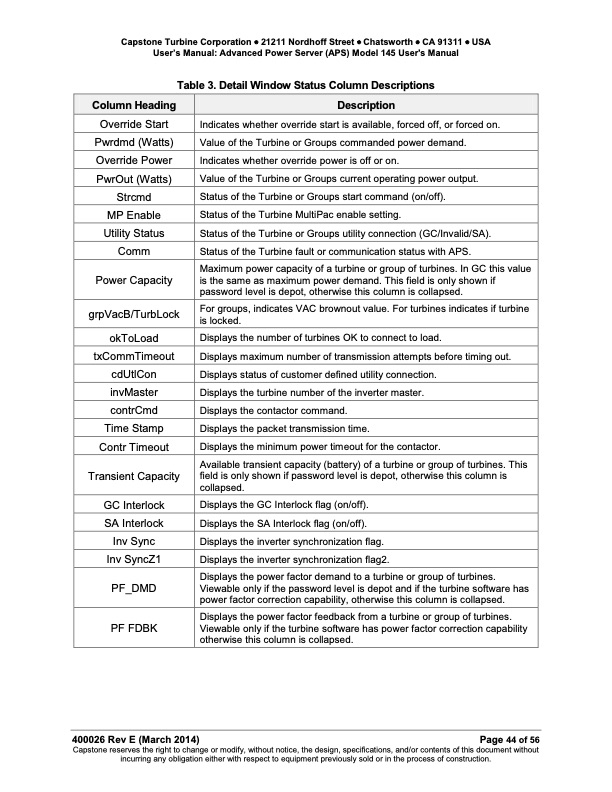

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual Table 3. Detail Window Status Column Descriptions Indicates whether override start is available, forced off, or forced on. Value of the Turbine or Groups commanded power demand. Indicates whether override power is off or on. Value of the Turbine or Groups current operating power output. Status of the Turbine or Groups start command (on/off). Status of the Turbine MultiPac enable setting. Status of the Turbine or Groups utility connection (GC/Invalid/SA). Status of the Turbine fault or communication status with APS. Maximum power capacity of a turbine or group of turbines. In GC this value is the same as maximum power demand. This field is only shown if password level is depot, otherwise this column is collapsed. For groups, indicates VAC brownout value. For turbines indicates if turbine is locked. Displays the number of turbines OK to connect to load. Displays maximum number of transmission attempts before timing out. Displays status of customer defined utility connection. Displays the turbine number of the inverter master. Displays the contactor command. Displays the packet transmission time. Displays the minimum power timeout for the contactor. Displays the GC Interlock flag (on/off). Displays the SA Interlock flag (on/off). Displays the inverter synchronization flag. Displays the inverter synchronization flag2. Displays the power factor demand to a turbine or group of turbines. Viewable only if the password level is depot and if the turbine software has power factor correction capability, otherwise this column is collapsed. Displays the power factor feedback from a turbine or group of turbines. Viewable only if the turbine software has power factor correction capability otherwise this column is collapsed. Page 44 of 56 Column Heading Description Override Start Pwrdmd (Watts) Override Power PwrOut (Watts) Strcmd MP Enable Utility Status Comm Power Capacity grpVacB/TurbLock okToLoad txCommTimeout cdUtlCon invMaster contrCmd Time Stamp Contr Timeout GC Interlock SA Interlock Inv Sync Inv SyncZ1 PF_DMD PF FDBK 400026 Rev E (March 2014) Transient Capacity Available transient capacity (battery) of a turbine or group of turbines. This field is only shown if password level is depot, otherwise this column is collapsed. Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
