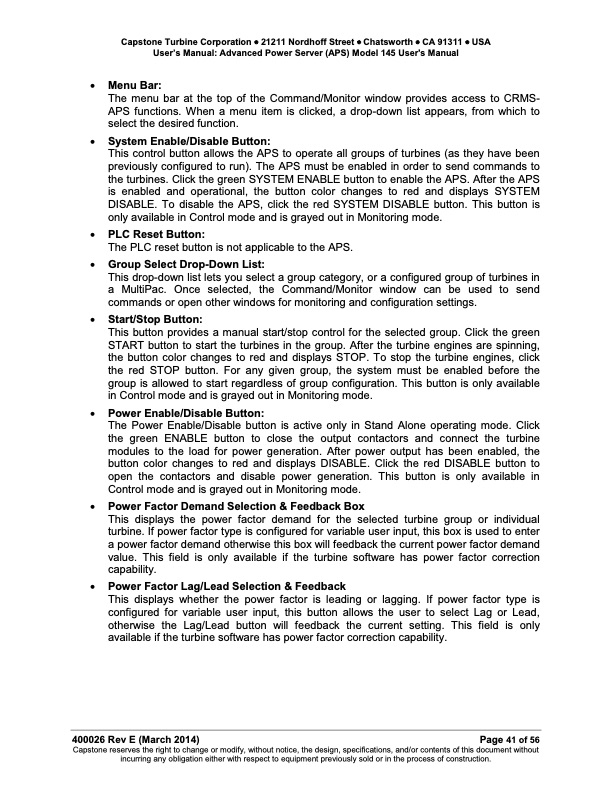

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual • Menu Bar: The menu bar at the top of the Command/Monitor window provides access to CRMS- APS functions. When a menu item is clicked, a drop-down list appears, from which to select the desired function. • System Enable/Disable Button: This control button allows the APS to operate all groups of turbines (as they have been previously configured to run). The APS must be enabled in order to send commands to the turbines. Click the green SYSTEM ENABLE button to enable the APS. After the APS is enabled and operational, the button color changes to red and displays SYSTEM DISABLE. To disable the APS, click the red SYSTEM DISABLE button. This button is only available in Control mode and is grayed out in Monitoring mode. • PLC Reset Button: The PLC reset button is not applicable to the APS. • Group Select Drop-Down List: This drop-down list lets you select a group category, or a configured group of turbines in a MultiPac. Once selected, the Command/Monitor window can be used to send commands or open other windows for monitoring and configuration settings. • Start/Stop Button: This button provides a manual start/stop control for the selected group. Click the green START button to start the turbines in the group. After the turbine engines are spinning, the button color changes to red and displays STOP. To stop the turbine engines, click the red STOP button. For any given group, the system must be enabled before the group is allowed to start regardless of group configuration. This button is only available in Control mode and is grayed out in Monitoring mode. • Power Enable/Disable Button: The Power Enable/Disable button is active only in Stand Alone operating mode. Click the green ENABLE button to close the output contactors and connect the turbine modules to the load for power generation. After power output has been enabled, the button color changes to red and displays DISABLE. Click the red DISABLE button to open the contactors and disable power generation. This button is only available in Control mode and is grayed out in Monitoring mode. • Power Factor Demand Selection & Feedback Box This displays the power factor demand for the selected turbine group or individual turbine. If power factor type is configured for variable user input, this box is used to enter a power factor demand otherwise this box will feedback the current power factor demand value. This field is only available if the turbine software has power factor correction capability. • Power Factor Lag/Lead Selection & Feedback This displays whether the power factor is leading or lagging. If power factor type is configured for variable user input, this button allows the user to select Lag or Lead, otherwise the Lag/Lead button will feedback the current setting. This field is only available if the turbine software has power factor correction capability. 400026 Rev E (March 2014) Page 41 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
