PDF Publication Title:
Text from PDF Page: 014

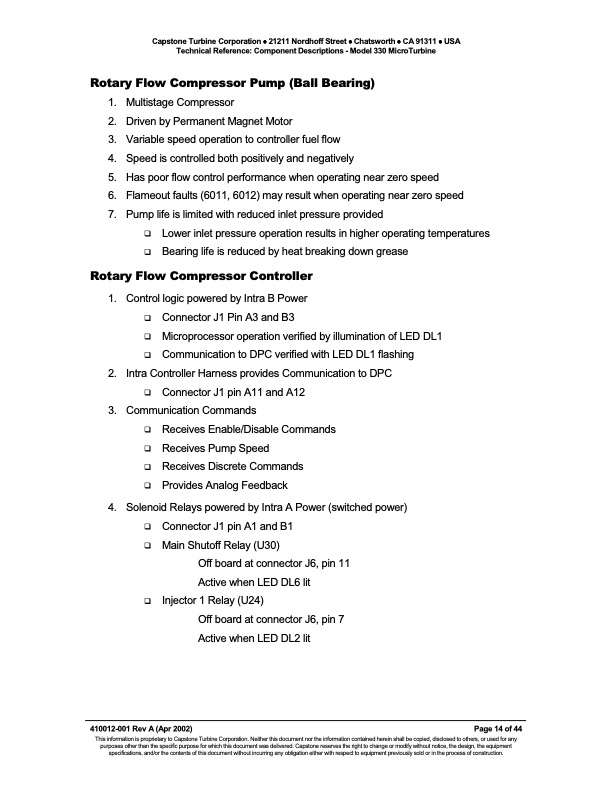

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Rotary Flow Compressor Pump (Ball Bearing) 1. Multistage Compressor 2. Driven by Permanent Magnet Motor 3. Variable speed operation to controller fuel flow 4. Speed is controlled both positively and negatively 5. Has poor flow control performance when operating near zero speed 6. Flameout faults (6011, 6012) may result when operating near zero speed 7. Pump life is limited with reduced inlet pressure provided Lower inlet pressure operation results in higher operating temperatures Bearing life is reduced by heat breaking down grease Rotary Flow Compressor Controller Control logic powered by Intra B Power Connector J1 Pin A3 and B3 Microprocessor operation verified by illumination of LED DL1 Communication to DPC verified with LED DL1 flashing 2. Intra Controller Harness provides Communication to DPC Connector J1 pin A11 and A12 3. Communication Commands Receives Enable/Disable Commands Receives Pump Speed Receives Discrete Commands Provides Analog Feedback Solenoid Relays powered by Intra A Power (switched power) Connector J1 pin A1 and B1 Main Shutoff Relay (U30) Off board at connector J6, pin 11 Active when LED DL6 lit Injector 1 Relay (U24) Off board at connector J6, pin 7 Active when LED DL2 lit 410012-001 Rev A (Apr 2002) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 14 of 44PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
PDF Search Title:
Technical Reference Component Descriptions Capstone Model 330 MicroTurbineOriginal File Name Searched:
ComponentDescriptions_410012.pdfDIY PDF Search: Google It | Yahoo | Bing
