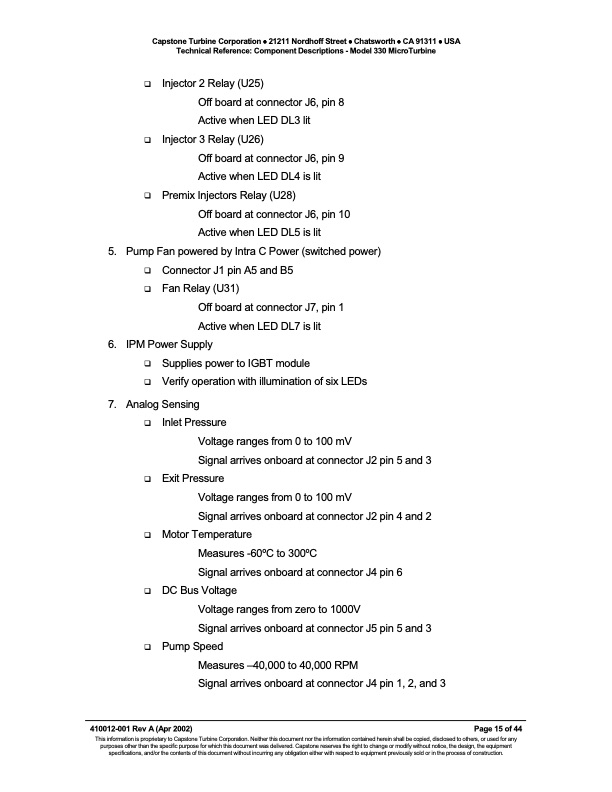

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Injector 2 Relay (U25) Off board at connector J6, pin 8 Active when LED DL3 lit Injector 3 Relay (U26) Off board at connector J6, pin 9 Active when LED DL4 is lit Premix Injectors Relay (U28) Off board at connector J6, pin 10 Active when LED DL5 is lit 5. Pump Fan powered by Intra C Power (switched power) Connector J1 pin A5 and B5 Fan Relay (U31) Off board at connector J7, pin 1 Active when LED DL7 is lit 6. IPM Power Supply Supplies power to IGBT module Verify operation with illumination of six LEDs Analog Inlet Pressure Voltage ranges from 0 to 100 mV Signal arrives onboard at connector J2 pin 5 and 3 Exit Pressure Voltage ranges from 0 to 100 mV Signal arrives onboard at connector J2 pin 4 and 2 Motor Temperature Measures -60oC to 300oC Signal arrives onboard at connector J4 pin 6 DC Bus Voltage Voltage ranges from zero to 1000V Signal arrives onboard at connector J5 pin 5 and 3 Pump Speed Measures –40,000 to 40,000 RPM Signal arrives onboard at connector J4 pin 1, 2, and 3 410012-001 Rev A (Apr 2002) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Sensing Page 15 of 44PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
