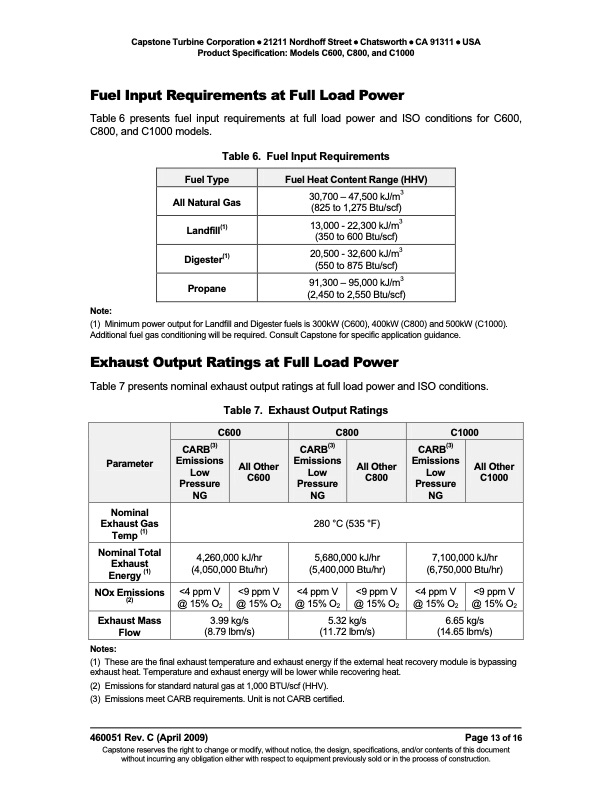

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Fuel Input Requirements at Full Load Power Table 6 presents fuel input requirements at full load power and ISO conditions for C600, C800, and C1000 models. Table 6. Fuel Input Requirements Fuel Type Fuel Heat Content Range (HHV) All Natural Gas Landfill(1) Digester(1) Propane 30,700 – 47,500 kJ/m3 (825 to 1,275 Btu/scf) 13,000 - 22,300 kJ/m3 (350 to 600 Btu/scf) 20,500 - 32,600 kJ/m3 (550 to 875 Btu/scf) 91,300 – 95,000 kJ/m3 (2,450 to 2,550 Btu/scf) Note: (1) Minimum power output for Landfill and Digester fuels is 300kW (C600), 400kW (C800) and 500kW (C1000). Additional fuel gas conditioning will be required. Consult Capstone for specific application guidance. Exhaust Output Ratings at Full Load Power Table 7 presents nominal exhaust output ratings at full load power and ISO conditions. Table 7. Exhaust Output Ratings Parameter C600 C800 C1000 CARB(3) Emissions Low Pressure NG All Other C600 CARB(3) Emissions Low Pressure NG All Other C800 CARB(3) Emissions Low Pressure NG All Other C1000 Nominal Exhaust Gas Temp (1) Nominal Total Exhaust Energy (1) 4,260,000 kJ/hr (4,050,000 Btu/hr) 280 °C (535 °F) 5,680,000 kJ/hr (5,400,000 Btu/hr) 7,100,000 kJ/hr (6,750,000 Btu/hr) NOxEmissions <4ppmV <9ppmV <4ppmV <9ppmV <4ppmV <9ppmV Notes: (1) These are the final exhaust temperature and exhaust energy if the external heat recovery module is bypassing exhaust heat. Temperature and exhaust energy will be lower while recovering heat. (2) Emissions for standard natural gas at 1,000 BTU/scf (HHV). (3) Emissions meet CARB requirements. Unit is not CARB certified. 460051 Rev. C (April 2009) Page 13 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. (2) Exhaust Mass 3.99 kg/s 5.32 kg/s 6.65 kg/s @15%O2 @15%O2 @15%O2 @15%O2 @15%O2 @15%O2 Flow (8.79 lbm/s) (11.72 lbm/s) (14.65 lbm/s)PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
