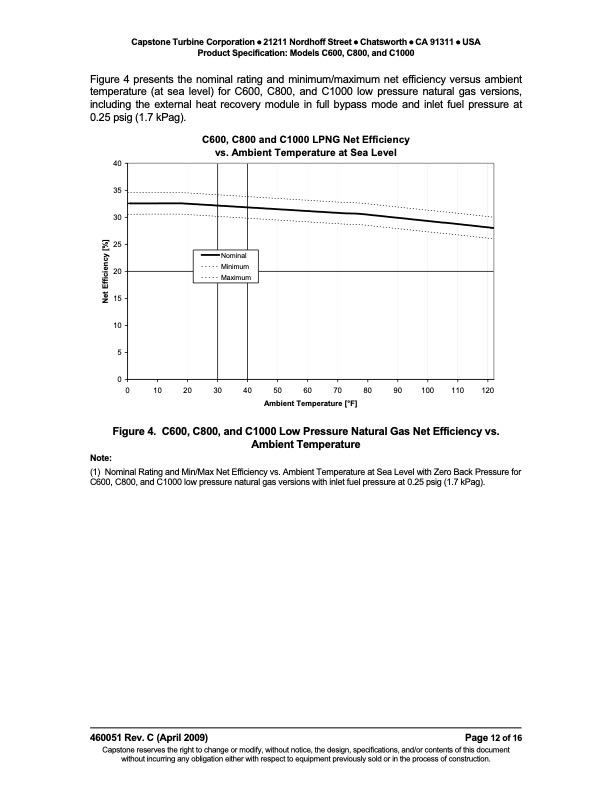

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Figure 4 presents the nominal rating and minimum/maximum net efficiency versus ambient temperature (at sea level) for C600, C800, and C1000 low pressure natural gas versions, including the external heat recovery module in full bypass mode and inlet fuel pressure at 0.25 psig (1.7 kPag). 40 35 30 25 20 15 10 5 C600, C800 and C1000 LPNG Net Efficiency vs. Ambient Temperature at Sea Level Nominal Minimum Maximum 0 0 10 20 30 40 50 60 70 80 90 100 110 120 Ambient Temperature [°F] Figure 4. C600, C800, and C1000 Low Pressure Natural Gas Net Efficiency vs. Ambient Temperature Note: (1) Nominal Rating and Min/Max Net Efficiency vs. Ambient Temperature at Sea Level with Zero Back Pressure for C600, C800, and C1000 low pressure natural gas versions with inlet fuel pressure at 0.25 psig (1.7 kPag). 460051 Rev. C (April 2009) Page 12 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Net Efficiency [%]PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
