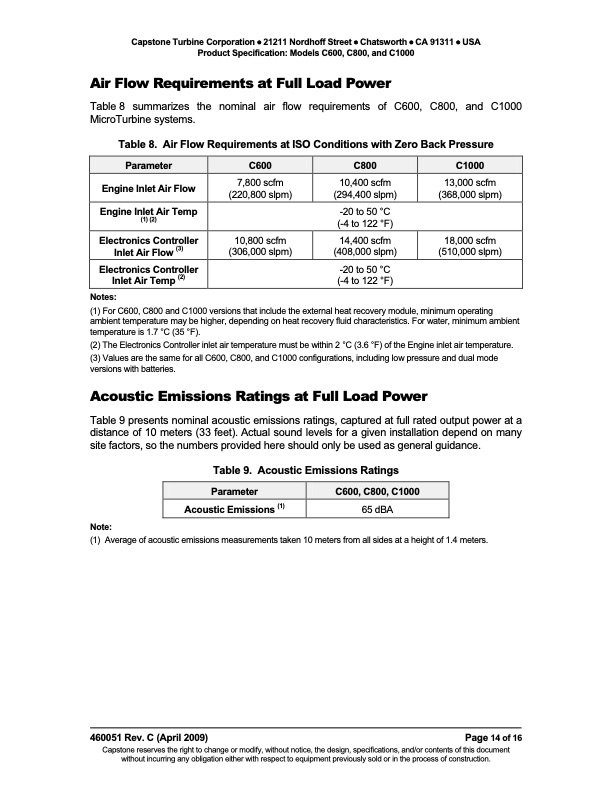

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Air Flow Requirements at Full Load Power Table8 summarizes the nominal air flow requirements of C600, C800, and C1000 MicroTurbine systems. Table 8. Air Flow Requirements at ISO Conditions with Zero Back Pressure Parameter C600 C800 C1000 Engine Inlet Air Flow Engine Inlet Air Temp (1) (2) Electronics Controller Inlet Air Flow (3) Electronics Controller Inlet Air Temp (2) Notes: 7,800 scfm (220,800 slpm) 10,800 scfm (306,000 slpm) 10,400 scfm (294,400 slpm) -20 to 50 °C (-4 to 122 °F) 14,400 scfm (408,000 slpm) -20 to 50 °C (-4 to 122 °F) 13,000 scfm (368,000 slpm) 18,000 scfm (510,000 slpm) (1) For C600, C800 and C1000 versions that include the external heat recovery module, minimum operating ambient temperature may be higher, depending on heat recovery fluid characteristics. For water, minimum ambient temperature is 1.7 °C (35 °F). (2) The Electronics Controller inlet air temperature must be within 2 °C (3.6 °F) of the Engine inlet air temperature. (3) Values are the same for all C600, C800, and C1000 configurations, including low pressure and dual mode versions with batteries. Acoustic Emissions Ratings at Full Load Power Table 9 presents nominal acoustic emissions ratings, captured at full rated output power at a distance of 10 meters (33 feet). Actual sound levels for a given installation depend on many site factors, so the numbers provided here should only be used as general guidance. Table 9. Acoustic Emissions Ratings Acoustic Emissions (1) 65 dBA Note: (1) Average of acoustic emissions measurements taken 10 meters from all sides at a height of 1.4 meters. Parameter C600, C800, C1000 460051 Rev. C (April 2009) Page 14 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
