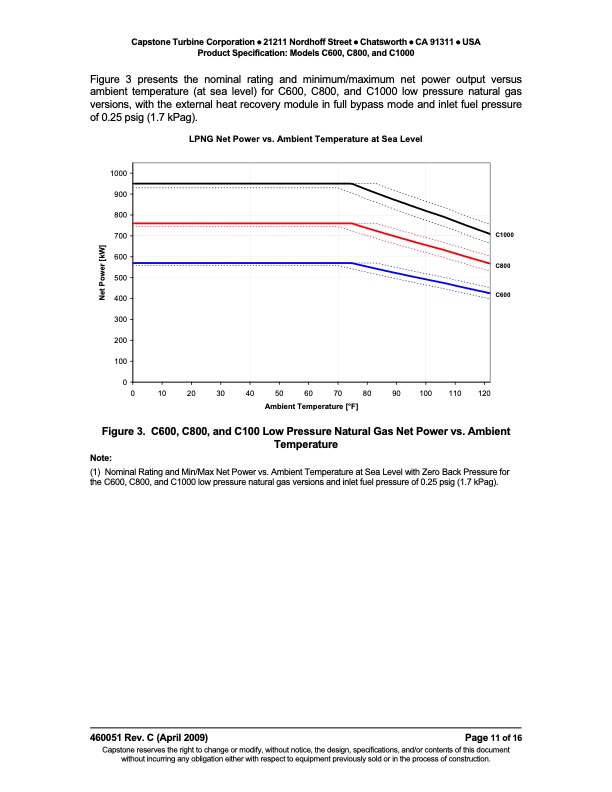

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Figure 3 presents the nominal rating and minimum/maximum net power output versus ambient temperature (at sea level) for C600, C800, and C1000 low pressure natural gas versions, with the external heat recovery module in full bypass mode and inlet fuel pressure of 0.25 psig (1.7 kPag). LPNG Net Power vs. Ambient Temperature at Sea Level 1000 900 800 700 600 500 400 300 200 100 0 Figure 3. C600, C800, and C100 Low Pressure Natural Gas Net Power vs. Ambient Temperature Note: (1) Nominal Rating and Min/Max Net Power vs. Ambient Temperature at Sea Level with Zero Back Pressure for the C600, C800, and C1000 low pressure natural gas versions and inlet fuel pressure of 0.25 psig (1.7 kPag). C1000 C800 C600 0 10 20 30 40 50 60 70 80 90 100 110 120 Ambient Temperature [°F] 460051 Rev. C (April 2009) Page 11 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Net Power [kW]PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
