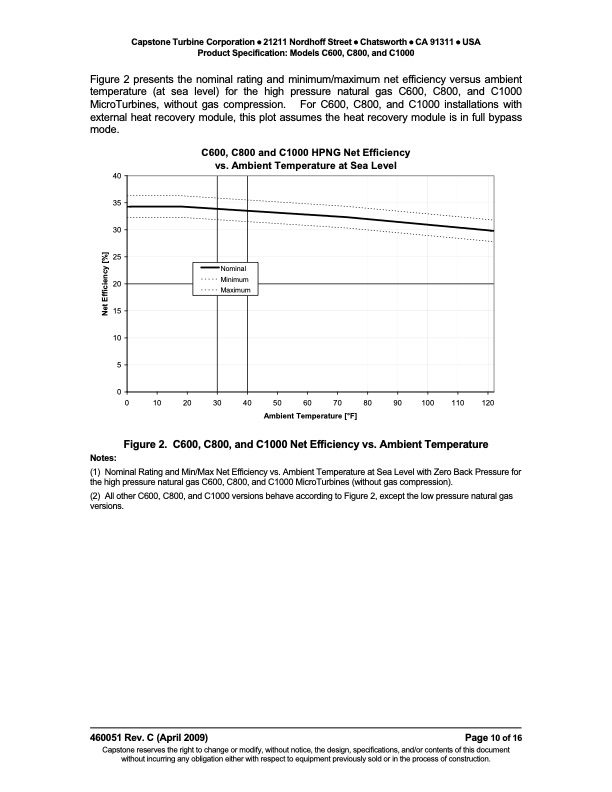

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Figure 2 presents the nominal rating and minimum/maximum net efficiency versus ambient temperature (at sea level) for the high pressure natural gas C600, C800, and C1000 MicroTurbines, without gas compression. For C600, C800, and C1000 installations with external heat recovery module, this plot assumes the heat recovery module is in full bypass mode. 40 35 30 25 20 15 10 5 C600, C800 and C1000 HPNG Net Efficiency vs. Ambient Temperature at Sea Level Nominal Minimum Maximum 0 0 10 20 30 40 50 60 70 80 90 100 110 120 Ambient Temperature [°F] Figure 2. C600, C800, and C1000 Net Efficiency vs. Ambient Temperature Notes: (1) Nominal Rating and Min/Max Net Efficiency vs. Ambient Temperature at Sea Level with Zero Back Pressure for the high pressure natural gas C600, C800, and C1000 MicroTurbines (without gas compression). (2) All other C600, C800, and C1000 versions behave according to Figure 2, except the low pressure natural gas versions. 460051 Rev. C (April 2009) Page 10 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Net Efficiency [%]PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
