Text from PDF Page: 025

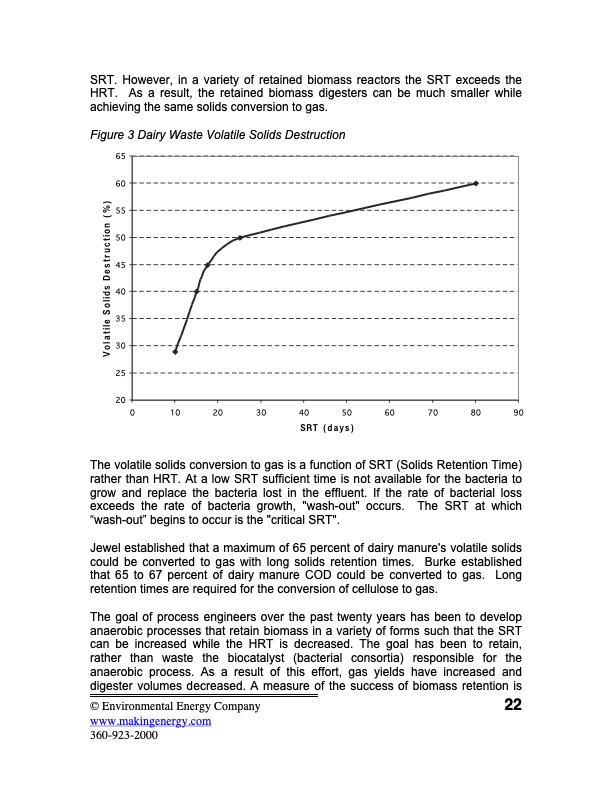

SRT. However, in a variety of retained biomass reactors the SRT exceeds the HRT. As a result, the retained biomass digesters can be much smaller while achieving the same solids conversion to gas. Figure 3 Dairy Waste Volatile Solids Destruction 65 60 55 50 45 40 35 30 25 20 The volatile solids conversion to gas is a function of SRT (Solids Retention Time) rather than HRT. At a low SRT sufficient time is not available for the bacteria to grow and replace the bacteria lost in the effluent. If the rate of bacterial loss exceeds the rate of bacteria growth, "wash-out" occurs. The SRT at which “wash-out” begins to occur is the "critical SRT". Jewel established that a maximum of 65 percent of dairy manure's volatile solids could be converted to gas with long solids retention times. Burke established that 65 to 67 percent of dairy manure COD could be converted to gas. Long retention times are required for the conversion of cellulose to gas. The goal of process engineers over the past twenty years has been to develop anaerobic processes that retain biomass in a variety of forms such that the SRT can be increased while the HRT is decreased. The goal has been to retain, rather than waste the biocatalyst (bacterial consortia) responsible for the anaerobic process. As a result of this effort, gas yields have increased and digester volumes decreased. A measure of the success of biomass retention is © Environmental Energy Company 22 www.makingenergy.com 360-923-2000 0 10 20 30 40 50 60 70 80 90 SRT (days) Volatile Solids Destruction (%)PDF Image | Dairy Waste Anaerobic Digestion Handbook Options for Recovering Beneficial Products From Dairy Manure
