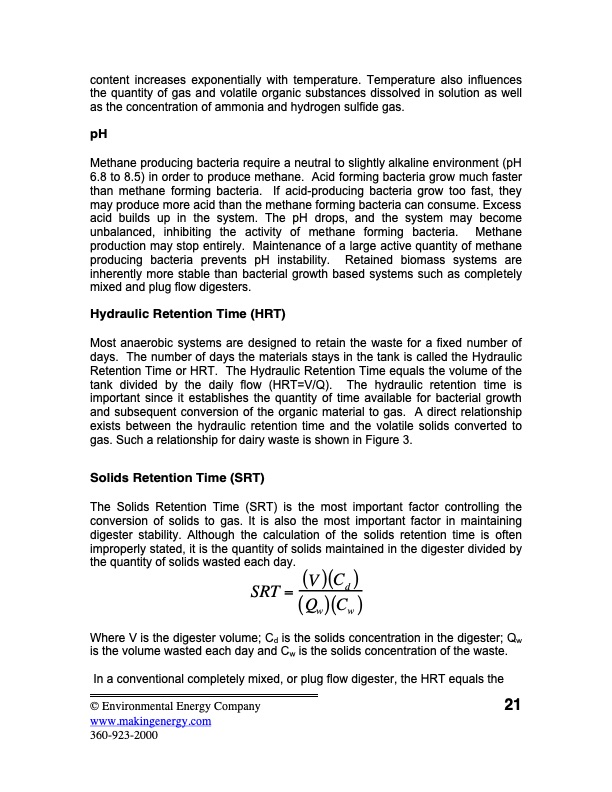

content increases exponentially with temperature. Temperature also influences the quantity of gas and volatile organic substances dissolved in solution as well as the concentration of ammonia and hydrogen sulfide gas. pH Methane producing bacteria require a neutral to slightly alkaline environment (pH 6.8 to 8.5) in order to produce methane. Acid forming bacteria grow much faster than methane forming bacteria. If acid-producing bacteria grow too fast, they may produce more acid than the methane forming bacteria can consume. Excess acid builds up in the system. The pH drops, and the system may become unbalanced, inhibiting the activity of methane forming bacteria. Methane production may stop entirely. Maintenance of a large active quantity of methane producing bacteria prevents pH instability. Retained biomass systems are inherently more stable than bacterial growth based systems such as completely mixed and plug flow digesters. Hydraulic Retention Time (HRT) Most anaerobic systems are designed to retain the waste for a fixed number of days. The number of days the materials stays in the tank is called the Hydraulic Retention Time or HRT. The Hydraulic Retention Time equals the volume of the tank divided by the daily flow (HRT=V/Q). The hydraulic retention time is important since it establishes the quantity of time available for bacterial growth and subsequent conversion of the organic material to gas. A direct relationship exists between the hydraulic retention time and the volatile solids converted to gas. Such a relationship for dairy waste is shown in Figure 3. Solids Retention Time (SRT) The Solids Retention Time (SRT) is the most important factor controlling the conversion of solids to gas. It is also the most important factor in maintaining digester stability. Although the calculation of the solids retention time is often improperly stated, it is the quantity of solids maintained in the digester divided by the quantity of solids wasted each day. SRT= (V)(Cd) (Q )(C ) Where V is the digester volume; Cd is the solids concentration in the digester; Qw is the volume wasted each day and Cw is the solids concentration of the waste. In a conventional completely mixed, or plug flow digester, the HRT equals the © Environmental Energy Company 21 www.makingenergy.com 360-923-2000 wwPDF Image | Dairy Waste Anaerobic Digestion Handbook Options for Recovering Beneficial Products From Dairy Manure
