PDF Publication Title:
Text from PDF Page: 024

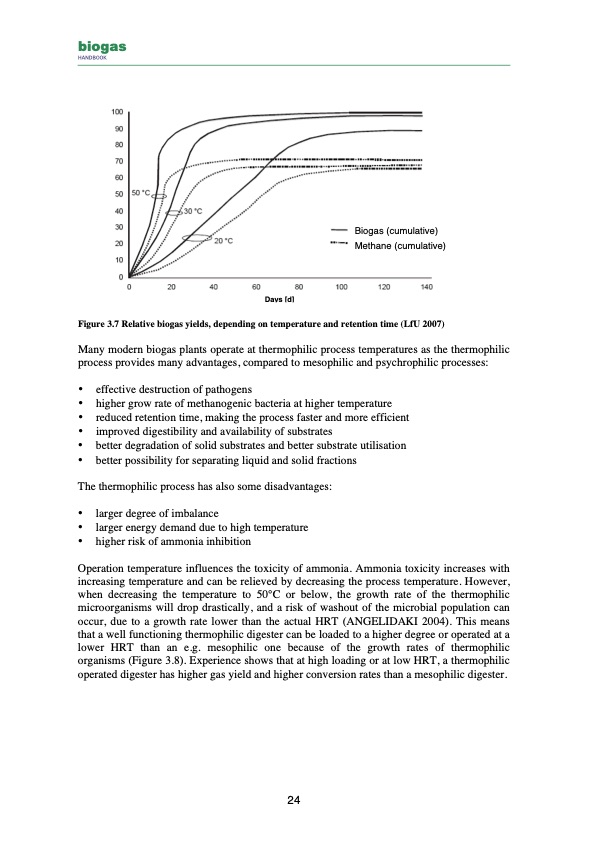

biogas HANDBOOK Days [d] Figure 3.7 Relative biogas yields, depending on temperature and retention time (LfU 2007) Many modern biogas plants operate at thermophilic process temperatures as the thermophilic process provides many advantages, compared to mesophilic and psychrophilic processes: • effective destruction of pathogens • higher grow rate of methanogenic bacteria at higher temperature • reduced retention time, making the process faster and more efficient • improved digestibility and availability of substrates • better degradation of solid substrates and better substrate utilisation • better possibility for separating liquid and solid fractions The thermophilic process has also some disadvantages: • larger degree of imbalance • larger energy demand due to high temperature • higher risk of ammonia inhibition Operation temperature influences the toxicity of ammonia. Ammonia toxicity increases with increasing temperature and can be relieved by decreasing the process temperature. However, when decreasing the temperature to 50°C or below, the growth rate of the thermophilic microorganisms will drop drastically, and a risk of washout of the microbial population can occur, due to a growth rate lower than the actual HRT (ANGELIDAKI 2004). This means that a well functioning thermophilic digester can be loaded to a higher degree or operated at a lower HRT than an e.g. mesophilic one because of the growth rates of thermophilic organisms (Figure 3.8). Experience shows that at high loading or at low HRT, a thermophilic operated digester has higher gas yield and higher conversion rates than a mesophilic digester. 24 Biogas (cumulative) Methane (cumulative)PDF Image | biogas HANDBOOK
