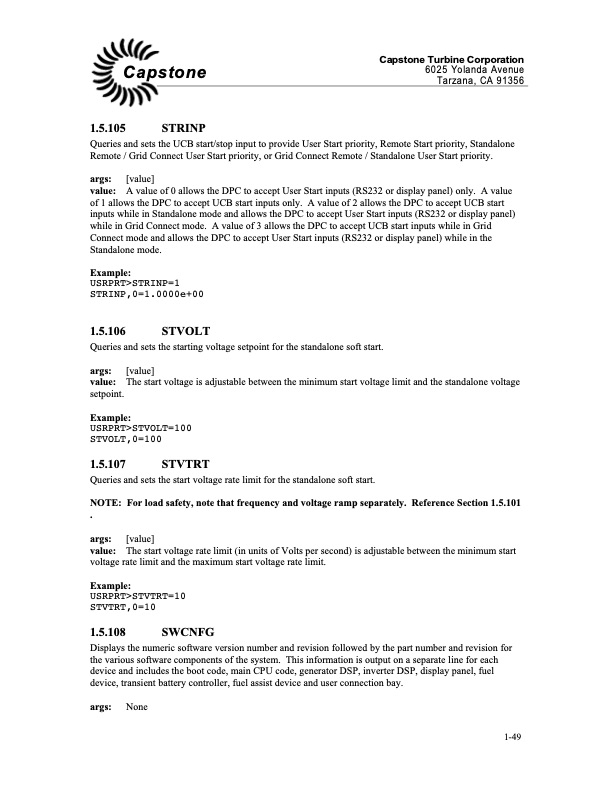

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.105 STRINP Queries and sets the UCB start/stop input to provide User Start priority, Remote Start priority, Standalone Remote / Grid Connect User Start priority, or Grid Connect Remote / Standalone User Start priority. args: [value] value: A value of 0 allows the DPC to accept User Start inputs (RS232 or display panel) only. A value of 1 allows the DPC to accept UCB start inputs only. A value of 2 allows the DPC to accept UCB start inputs while in Standalone mode and allows the DPC to accept User Start inputs (RS232 or display panel) while in Grid Connect mode. A value of 3 allows the DPC to accept UCB start inputs while in Grid Connect mode and allows the DPC to accept User Start inputs (RS232 or display panel) while in the Standalone mode. Example: USRPRT>STRINP=1 STRINP,0=1.0000e+00 1.5.106 STVOLT Queries and sets the starting voltage setpoint for the standalone soft start. args: [value] value: The start voltage is adjustable between the minimum start voltage limit and the standalone voltage setpoint. Example: USRPRT>STVOLT=100 STVOLT,0=100 1.5.107 STVTRT Queries and sets the start voltage rate limit for the standalone soft start. NOTE: For load safety, note that frequency and voltage ramp separately. Reference Section 1.5.101 . args: [value] value: The start voltage rate limit (in units of Volts per second) is adjustable between the minimum start voltage rate limit and the maximum start voltage rate limit. Example: USRPRT>STVTRT=10 STVTRT,0=10 1.5.108 SWCNFG Displays the numeric software version number and revision followed by the part number and revision for the various software components of the system. This information is output on a separate line for each device and includes the boot code, main CPU code, generator DSP, inverter DSP, display panel, fuel device, transient battery controller, fuel assist device and user connection bay. args: None 1-49PDF Image | Engineering Specification Communication Protocol
