Text from PDF Page: 057

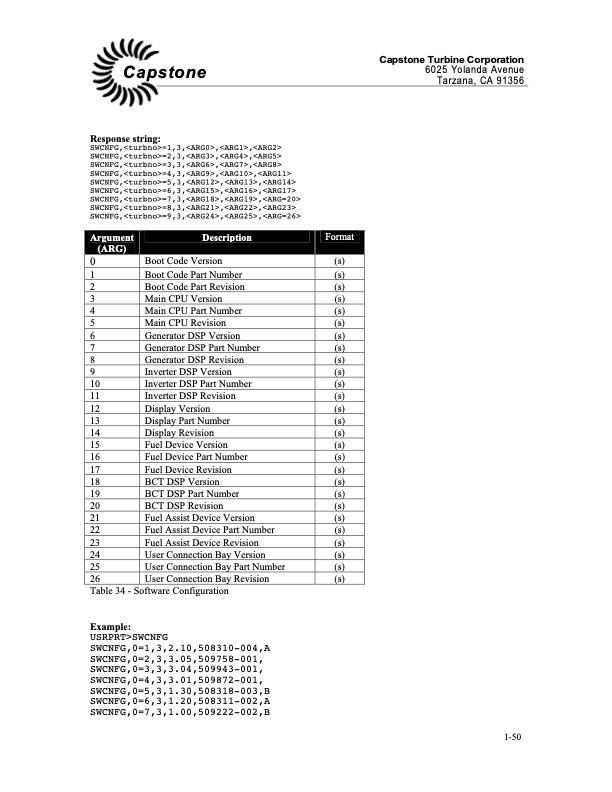

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 Response string: SWCNFG,=1,3,,, SWCNFG,=2,3,,, SWCNFG,=3,3,,, SWCNFG,=4,3,,, SWCNFG,=5,3,,, SWCNFG,=6,3,,, SWCNFG,=7,3,,, SWCNFG,=8,3,,, SWCNFG,=9,3,,, 0 Boot Code Version (s) 1 Boot Code Part Number (s) 2 Boot Code Part Revision (s) 3 Main CPU Version (s) 4 Main CPU Part Number (s) 5 Main CPU Revision (s) 6 Generator DSP Version (s) 7 Generator DSP Part Number (s) 8 Generator DSP Revision (s) 9 Inverter DSP Version (s) 10 Inverter DSP Part Number (s) 11 Inverter DSP Revision (s) 12 Display Version (s) 13 Display Part Number (s) 14 Display Revision (s) 15 Fuel Device Version (s) 16 Fuel Device Part Number (s) 17 Fuel Device Revision (s) 18 BCT DSP Version (s) 19 BCT DSP Part Number (s) 20 BCT DSP Revision (s) 21 Fuel Assist Device Version (s) 22 Fuel Assist Device Part Number (s) 23 Fuel Assist Device Revision (s) 24 User Connection Bay Version (s) 25 User Connection Bay Part Number (s) 26 User Connection Bay Revision (s) Table 34 - Software Configuration Example: USRPRT>SWCNFG SWCNFG,0=1,3,2.10,508310-004,A SWCNFG,0=2,3,3.05,509758-001, SWCNFG,0=3,3,3.04,509943-001, SWCNFG,0=4,3,3.01,509872-001, SWCNFG,0=5,3,1.30,508318-003,B SWCNFG,0=6,3,1.20,508311-002,A SWCNFG,0=7,3,1.00,509222-002,B Argument (ARG) Description Format 1-50
