PDF Publication Title:

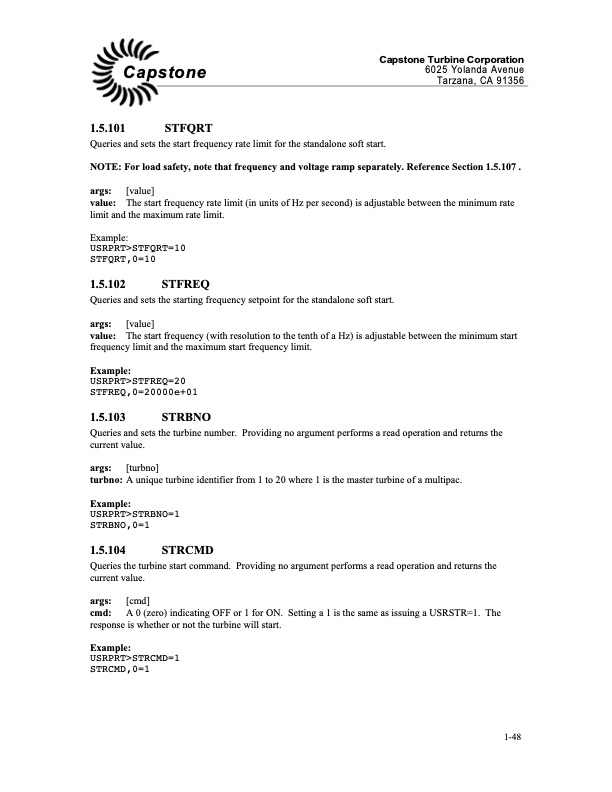

Text from PDF Page: 055
Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.101 STFQRT Queries and sets the start frequency rate limit for the standalone soft start. NOTE: For load safety, note that frequency and voltage ramp separately. Reference Section 1.5.107 . args: [value] value: The start frequency rate limit (in units of Hz per second) is adjustable between the minimum rate limit and the maximum rate limit. Example: USRPRT>STFQRT=10 STFQRT,0=10 1.5.102 STFREQ Queries and sets the starting frequency setpoint for the standalone soft start. args: [value] value: The start frequency (with resolution to the tenth of a Hz) is adjustable between the minimum start frequency limit and the maximum start frequency limit. Example: USRPRT>STFREQ=20 STFREQ,0=20000e+01 1.5.103 STRBNO Queries and sets the turbine number. Providing no argument performs a read operation and returns the current value. args: [turbno] turbno: A unique turbine identifier from 1 to 20 where 1 is the master turbine of a multipac. Example: USRPRT>STRBNO=1 STRBNO,0=1 1.5.104 STRCMD Queries the turbine start command. Providing no argument performs a read operation and returns the current value. args: [cmd] cmd: A 0 (zero) indicating OFF or 1 for ON. Setting a 1 is the same as issuing a USRSTR=1. The response is whether or not the turbine will start. Example: USRPRT>STRCMD=1 STRCMD,0=1 1-48PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
