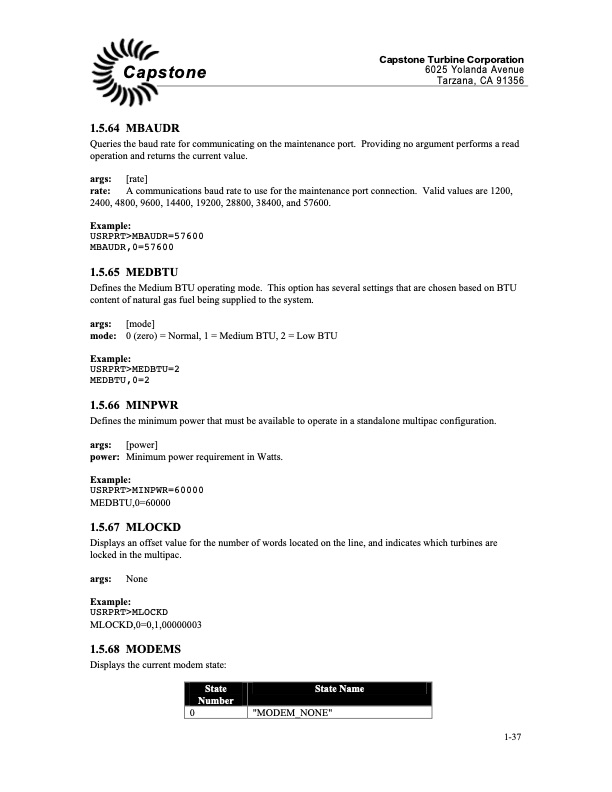

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.64 MBAUDR Queries the baud rate for communicating on the maintenance port. Providing no argument performs a read operation and returns the current value. args: [rate] rate: A communications baud rate to use for the maintenance port connection. Valid values are 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, and 57600. Example: USRPRT>MBAUDR=57600 MBAUDR,0=57600 1.5.65 MEDBTU Defines the Medium BTU operating mode. This option has several settings that are chosen based on BTU content of natural gas fuel being supplied to the system. args: [mode] mode: 0 (zero) = Normal, 1 = Medium BTU, 2 = Low BTU Example: USRPRT>MEDBTU=2 MEDBTU,0=2 1.5.66 MINPWR Defines the minimum power that must be available to operate in a standalone multipac configuration. args: [power] power: MinimumpowerrequirementinWatts. Example: USRPRT>MINPWR=60000 MEDBTU,0=60000 1.5.67 MLOCKD Displays an offset value for the number of words located on the line, and indicates which turbines are locked in the multipac. args: None Example: USRPRT>MLOCKD MLOCKD,0=0,1,00000003 1.5.68 MODEMS Displays the current modem state: 0 "MODEM_NONE" State Number State Name 1-37PDF Image | Engineering Specification Communication Protocol
