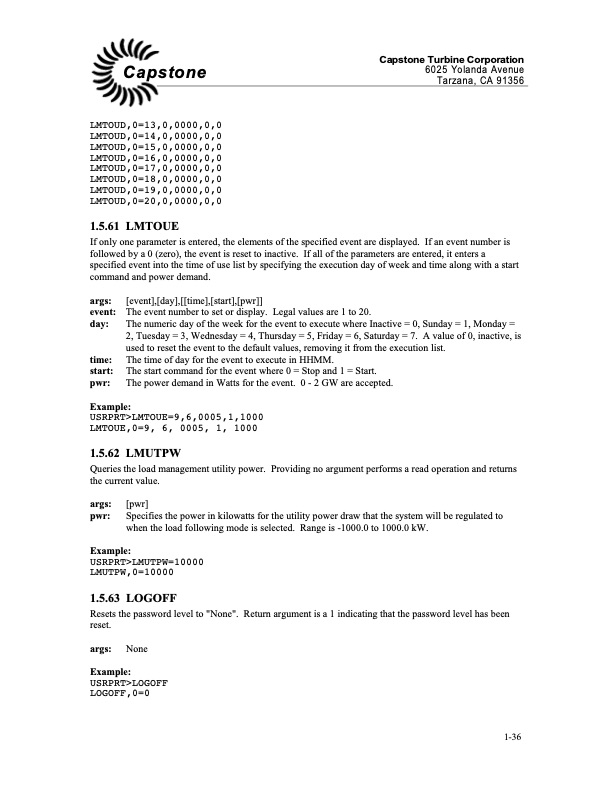

Text from PDF Page: 043

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 LMTOUD,0=13,0,0000,0,0 LMTOUD,0=14,0,0000,0,0 LMTOUD,0=15,0,0000,0,0 LMTOUD,0=16,0,0000,0,0 LMTOUD,0=17,0,0000,0,0 LMTOUD,0=18,0,0000,0,0 LMTOUD,0=19,0,0000,0,0 LMTOUD,0=20,0,0000,0,0 1.5.61 LMTOUE If only one parameter is entered, the elements of the specified event are displayed. If an event number is followed by a 0 (zero), the event is reset to inactive. If all of the parameters are entered, it enters a specified event into the time of use list by specifying the execution day of week and time along with a start command and power demand. args: event: day: time: start: pwr: [event],[day],[[time],[start],[pwr]] The event number to set or display. Legal values are 1 to 20. The numeric day of the week for the event to execute where Inactive = 0, Sunday = 1, Monday = 2, Tuesday = 3, Wednesday = 4, Thursday = 5, Friday = 6, Saturday = 7. A value of 0, inactive, is used to reset the event to the default values, removing it from the execution list. The time of day for the event to execute in HHMM. The start command for the event where 0 = Stop and 1 = Start. The power demand in Watts for the event. 0 - 2 GW are accepted. Example: USRPRT>LMTOUE=9,6,0005,1,1000 LMTOUE,0=9, 6, 0005, 1, 1000 1.5.62 LMUTPW Queries the load management utility power. Providing no argument performs a read operation and returns the current value. args: [pwr] pwr: Specifies the power in kilowatts for the utility power draw that the system will be regulated to when the load following mode is selected. Range is -1000.0 to 1000.0 kW. Example: USRPRT>LMUTPW=10000 LMUTPW,0=10000 1.5.63 LOGOFF Resets the password level to "None". Return argument is a 1 indicating that the password level has been reset. args: None Example: USRPRT>LOGOFF LOGOFF,0=0 1-36
