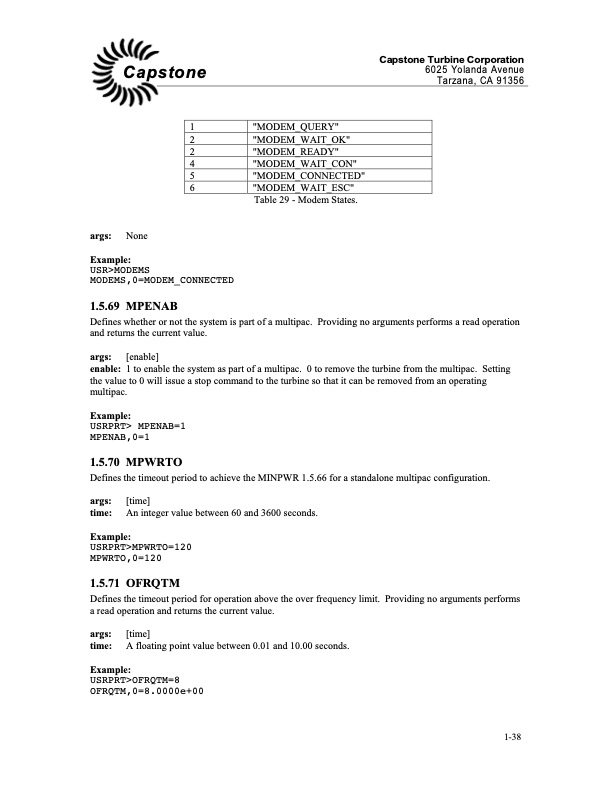

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1 "MODEM_QUERY" 2 "MODEM_WAIT_OK" 2 "MODEM_READY" 4 "MODEM_WAIT_CON" 5 "MODEM_CONNECTED" 6 "MODEM_WAIT_ESC" args: None Example: USR>MODEMS MODEMS,0=MODEM_CONNECTED 1.5.69 MPENAB Table 29 - Modem States. Defines whether or not the system is part of a multipac. Providing no arguments performs a read operation and returns the current value. args: [enable] enable: 1 to enable the system as part of a multipac. 0 to remove the turbine from the multipac. Setting the value to 0 will issue a stop command to the turbine so that it can be removed from an operating multipac. Example: USRPRT> MPENAB=1 MPENAB,0=1 1.5.70 MPWRTO Defines the timeout period to achieve the MINPWR 1.5.66 for a standalone multipac configuration. args: [time] time: An integer value between 60 and 3600 seconds. Example: USRPRT>MPWRTO=120 MPWRTO,0=120 1.5.71 OFRQTM Defines the timeout period for operation above the over frequency limit. Providing no arguments performs a read operation and returns the current value. args: [time] time: A floating point value between 0.01 and 10.00 seconds. Example: USRPRT>OFRQTM=8 OFRQTM,0=8.0000e+00 1-38PDF Image | Engineering Specification Communication Protocol
