PDF Publication Title:
Text from PDF Page: 042

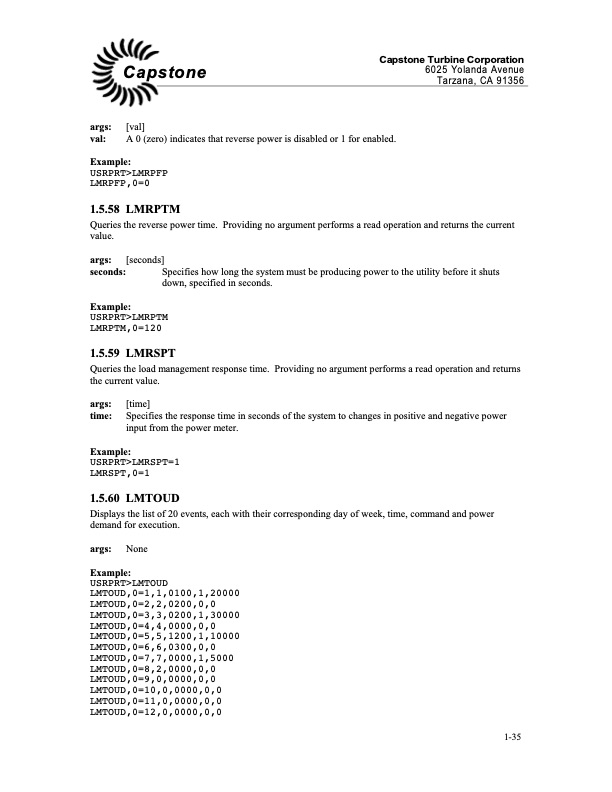

args: val: [val] A 0 (zero) indicates that reverse power is disabled or 1 for enabled. Capstone Capstone Turbine Corporation Example: USRPRT>LMRPFP LMRPFP,0=0 1.5.58 LMRPTM Queries the reverse power time. Providing no argument performs a read operation and returns the current value. args: [seconds] seconds: Specifies how long the system must be producing power to the utility before it shuts down, specified in seconds. Example: USRPRT>LMRPTM LMRPTM,0=120 1.5.59 LMRSPT Queries the load management response time. Providing no argument performs a read operation and returns the current value. args: [time] time: Specifies the response time in seconds of the system to changes in positive and negative power input from the power meter. Example: USRPRT>LMRSPT=1 LMRSPT,0=1 1.5.60 LMTOUD Displays the list of 20 events, each with their corresponding day of week, time, command and power demand for execution. args: None Example: USRPRT>LMTOUD LMTOUD,0=1,1,0100,1,20000 LMTOUD,0=2,2,0200,0,0 LMTOUD,0=3,3,0200,1,30000 LMTOUD,0=4,4,0000,0,0 LMTOUD,0=5,5,1200,1,10000 LMTOUD,0=6,6,0300,0,0 LMTOUD,0=7,7,0000,1,5000 LMTOUD,0=8,2,0000,0,0 LMTOUD,0=9,0,0000,0,0 LMTOUD,0=10,0,0000,0,0 LMTOUD,0=11,0,0000,0,0 LMTOUD,0=12,0,0000,0,0 6025 Yolanda Avenue Tarzana, CA 91356 1-35PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
