Text from PDF Page: 016

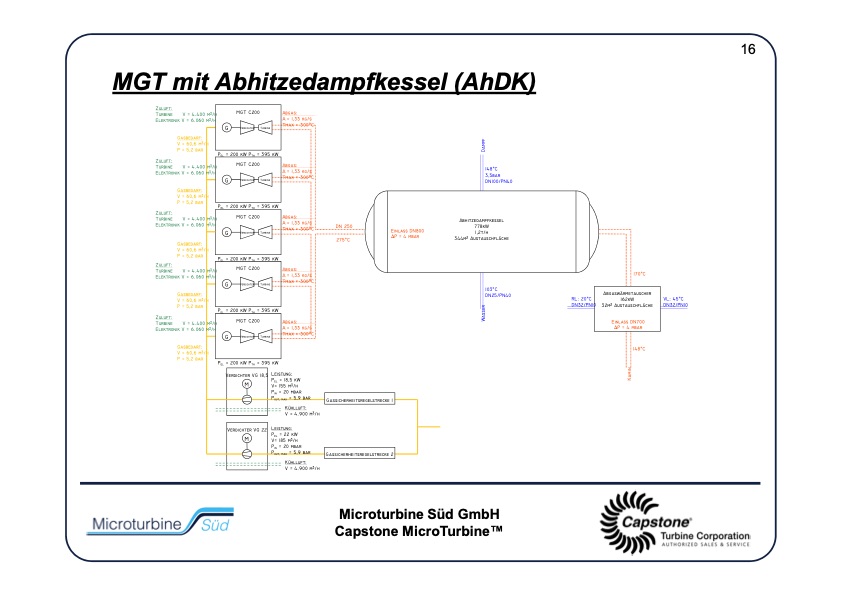

Kamin Wasser Dampf MGT mit Abhitzedampfkessel (AhDK) Zuluft: Turbine V = 4.400 m3/h Elektronik V = 6.060 m3/h MGT C200 Verdichter Abgas: A = 1,33 kg/s Tmax = 300°C Gasbedarf: V = 60,6 m3/h P = 5,2 bar Pel =200kWPth =395kW MGT C200 Zuluft: Turbine Elektronik V = 6.060 m3/h Abgas: A = 1,33 kg/s Tmax = 300°C V = 4.400 m3/h 148°C 3,5bar DN100/PN40 Gasbedarf: V = 60,6 m3/h P = 5,2 bar Pel =200kWPth =395kW MGT C200 Zuluft: Turbine Elektronik V = 6.060 m3/h Abgas: A = 1,33 kg/s Tmax = 300°C V = 4.400 m3/h Abhitzedampfkessel 778kW 1,2t/h 344m2 Austauschfläche Gasbedarf: V = 60,6 m3/h P = 5,2 bar Pel =200kWPth =395kW MGT C200 Zuluft: Turbine Elektronik V = 6.060 m3/h Abgas: A = 1,33 kg/s Tmax = 300°C V = 4.400 m3/h 170°C Abgaswärmetauscher Gasbedarf: V = 60,6 m3/h P = 5,2 bar 103°C DN25/PN40 RL: 20°C DN32/PN10 162kW 32m2 Austauschfläche VL: 45°C DN32/PN10 Zuluft: Turbine Elektronik V = 6.060 m3/h Pel =200kWPth =395kW MGT C200 Abgas: A = 1,33 kg/s Tmax = 300°C Einlass DN700 ∆P = 4 mbar V = 4.400 m3/h Gasbedarf: V = 60,6 m3/h P = 5,2 bar 148°C G Turbine G Verdichter Turbine G Verdichter Turbine DN 250 275°C Einlass DN800 ∆P = 4 mbar G Verdichter Turbine G Verdichter Turbine Pel =200kWPth =395kW Verdichter VG 18,5 M Leistung: Pel = 18,5 kW V= 155 m3/h Pin = 20 mbar Pout, max = 5,9 bar Verdichter VG 22 M Leistung: Pel = 22 kW V= 185 m3/h Pin = 20 mbar Pout, max = 5,9 bar Kühlluft: V = 4.900 m3/h Kühlluft: V = 4.900 m3/h Gassicherheitsregelstrecke 1 Gassicherheitsregelstrecke 2 Microturbine Süd GmbH Capstone MicroTurbineTM 16
