Text from PDF Page: 017

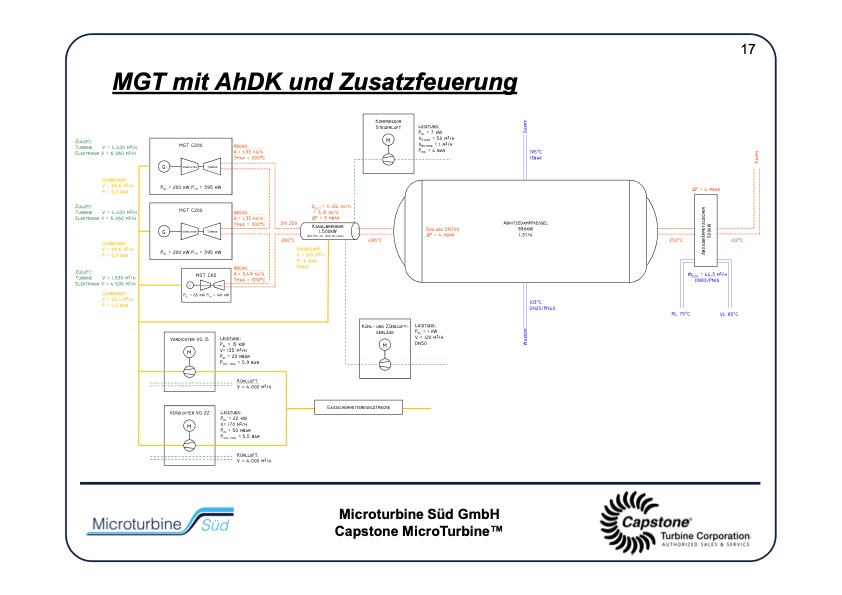

Wasser Dampf Abgaswärmetauscher 500kW Kamin Zuluft: Turbine Elektronik V = 6.060 m3/h M MGT mit AhDK und Zusatzfeuerung V = 4.400 m3/h MGT C200 Abgas: A = 1,33 kg/s Tmax = 300°C Gasbedarf: V = 60,6 m3/h P = 5,2 bar ∆P = 4 mbar Zuluft: Turbine Elektronik V = 6.060 m3/h MGT C200 Abgas: A = 1,33 kg/s Tmax = 300°C ALuft = 11.124 kg/h = 3,15 kg/s V = 4.400 m3/h Gasbedarf: V = 60,6 m3/h P=5,2bar 495°C 250°C 102°C Zuluft: Turbine Elektronik V = 4.500 m3/h MGT C65 Verdichter Turbine ṁH2O = 44,3 m3/h DN80/PN16 V = 1.530 m3/h Gasbedarf: V = 22,4 m3/h P = 4,2 bar G Pel =65kWPth =148kW G Pel =200kWPth =395kW Verdichter Turbine G Pel =200kWPth =395kW 1.500kW (DN 700, ca. 1200 mm lang) Verdichter Turbine Verdichter VG 15 M Leistung: Pel = 15 kW V= 135 m3/h Pin = 20 mbar Pout, max = 5,9 bar M Verdichter VG 22 M Leistung: Pel = 22 kW V= 170 m3/h Pin = 50 mbar Pout, max = 5,5 bar Abgas: A = 0,49 kg/s Tmax = 309°C Gasbedarf: V=150m3/h P= 4 bar DN40 Kühlluft: V = 4.000 m3/h Kühlluft: V = 4.000 m3/h DN 250 280°C ∆P = 3 mbar Kanalbrenner Einlass DN700 ∆P = 4 mbar Abhitzedampfkessel 886kW 1,3t/h Gassicherheitsregelstrecke Kompressor Steuerluft Leistung: Pel =7kW VStart = 50 m3/h VBetrieb = 1 m3/h Pmin = 4 bar Kühl− und Zündluft− gebläse Leistung: Pel = 1 kW V = 120 m3/h DN50 Microturbine Süd GmbH Capstone MicroTurbineTM 195°C 13bar 103°C DN25/PN40 RL 75°C VL 85°C 17
