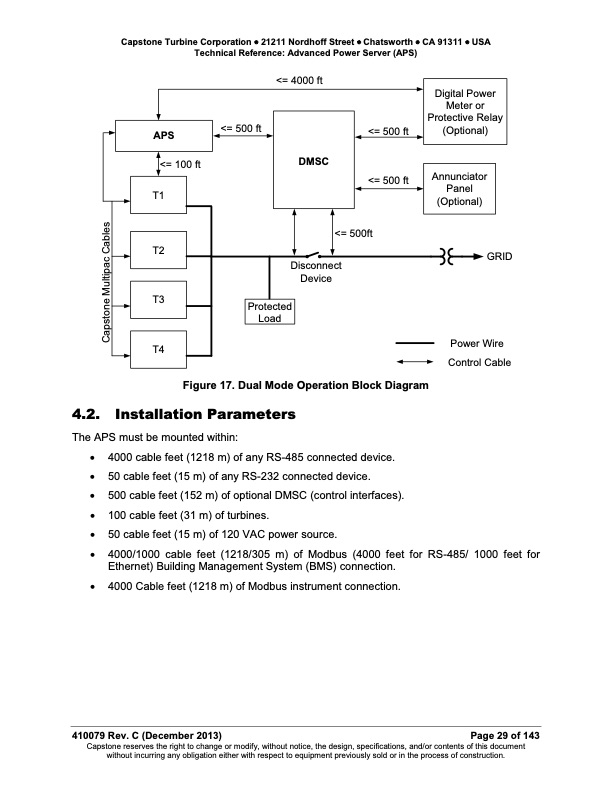

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) <= 500 ft <= 100 ft T1 T2 T3 T4 4.2. Installation Parameters The APS must be mounted within: • 4000 cable feet (1218 m) of any RS-485 connected device. • 50 cable feet (15 m) of any RS-232 connected device. • 500 cable feet (152 m) of optional DMSC (control interfaces). • 100 cable feet (31 m) of turbines. • 50 cable feet (15 m) of 120 VAC power source. APS <= 500 ft <= 500 ft <= 4000 ft <= 500ft Disconnect Device GRID Power Wire Control Cable Protected Load DMSC Figure 17. Dual Mode Operation Block Diagram • 4000/1000 cable feet (1218/305 m) of Modbus (4000 feet for RS-485/ 1000 feet for Ethernet) Building Management System (BMS) connection. • 4000 Cable feet (1218 m) of Modbus instrument connection. 410079 Rev. C (December 2013) Page 29 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Digital Power Meter or Protective Relay (Optional) Annunciator Panel (Optional) Capstone Multipac CablesPDF Image | Technical Reference Advanced Power Server (APS)
