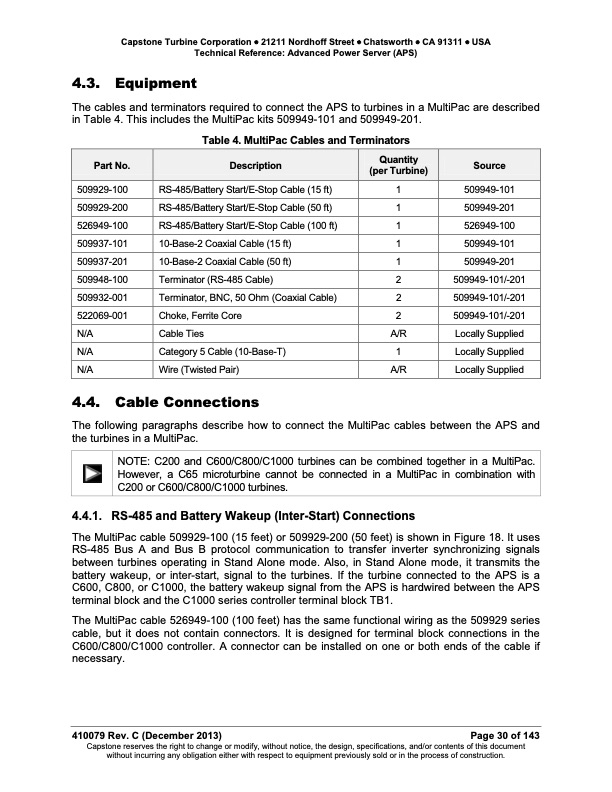

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 4.3. Equipment The cables and terminators required to connect the APS to turbines in a MultiPac are described in Table 4. This includes the MultiPac kits 509949-101 and 509949-201. Table 4. MultiPac Cables and Terminators Part No. Description Quantity (per Turbine) Source 509929-100 509929-200 526949-100 509937-101 509937-201 509948-100 509932-001 522069-001 N/A N/A N/A RS-485/Battery Start/E-Stop Cable (15 ft) RS-485/Battery Start/E-Stop Cable (50 ft) RS-485/Battery Start/E-Stop Cable (100 ft) 10-Base-2 Coaxial Cable (15 ft) 10-Base-2 Coaxial Cable (50 ft) Terminator (RS-485 Cable) Terminator, BNC, 50 Ohm (Coaxial Cable) Choke, Ferrite Core Cable Ties Category 5 Cable (10-Base-T) Wire (Twisted Pair) 1 509949-101 1 509949-201 1 526949-100 1 509949-101 1 509949-201 2 509949-101/-201 2 509949-101/-201 2 509949-101/-201 A/R Locally Supplied 1 Locally Supplied A/R Locally Supplied 4.4. Cable Connections The following paragraphs describe how to connect the MultiPac cables between the APS and the turbines in a MultiPac. 4.4.1. RS-485 and Battery Wakeup (Inter-Start) Connections The MultiPac cable 509929-100 (15 feet) or 509929-200 (50 feet) is shown in Figure 18. It uses RS-485 Bus A and Bus B protocol communication to transfer inverter synchronizing signals between turbines operating in Stand Alone mode. Also, in Stand Alone mode, it transmits the battery wakeup, or inter-start, signal to the turbines. If the turbine connected to the APS is a C600, C800, or C1000, the battery wakeup signal from the APS is hardwired between the APS terminal block and the C1000 series controller terminal block TB1. The MultiPac cable 526949-100 (100 feet) has the same functional wiring as the 509929 series cable, but it does not contain connectors. It is designed for terminal block connections in the C600/C800/C1000 controller. A connector can be installed on one or both ends of the cable if necessary. 410079 Rev. C (December 2013) Page 30 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE: C200 and C600/C800/C1000 turbines can be combined together in a MultiPac. However, a C65 microturbine cannot be connected in a MultiPac in combination with C200 or C600/C800/C1000 turbines.PDF Image | Technical Reference Advanced Power Server (APS)
